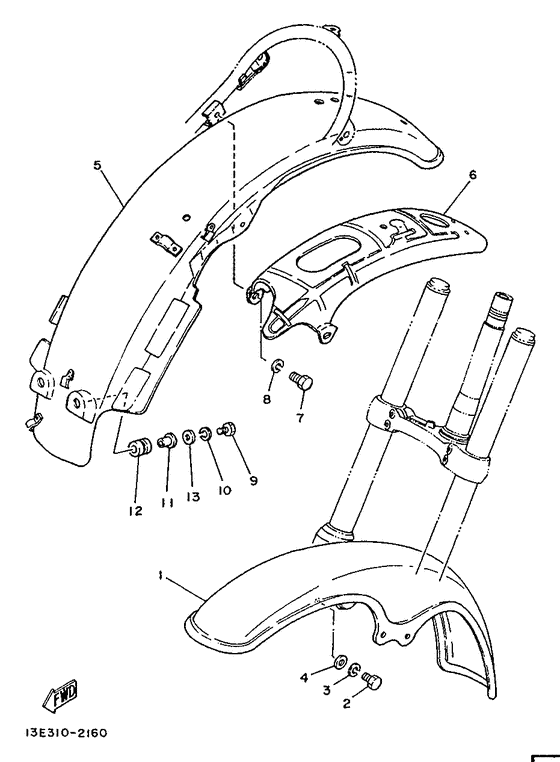

Pare boue Diagram Yamaha TY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3SU1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- TY125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
493-21510-00-36
Front Fender Comp
White |
493-21510-00-36 |
— | ||
| replacement | |||||
|
01
|
01
493-21510-00-00
Fender Front
White |
493-21510-00-00 |
— | ||
|
02
|
02
97001-06018-00 Bolt |
97001-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
02
|
02
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
04
|
04
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
04
|
04
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
04
|
04
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
05
|
05
539-21610-00-36
Rear Fender Comp
White |
539-21610-00-36 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
White |
999-99999-99-00 |
— | ||
|
06
|
06
539-21617-00-00
Bracket, Fender
|
539-21617-00-00 |
— | ||
|
07
|
07
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
07
|
07
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
07
|
07
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
08
|
08
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
09
|
09
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
12
|
12
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
13
|
13
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
