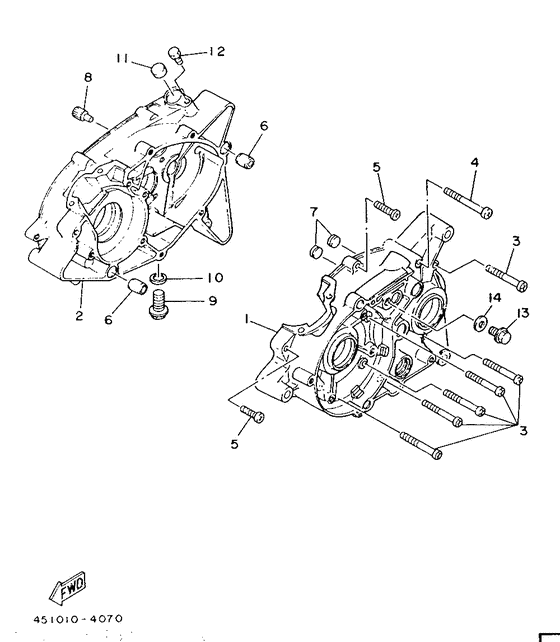

Crankcase Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
374-15111-00-00
Crankcase 1
|
374-15111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
374-15111-01-00
Crankcase 1
|
374-15111-01-00 |
— | ||
|
02
|
02
374-15121-02-00
Crankcase 2
|
374-15121-02-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
03
|
03
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
04
|
04
92501-06055-00 Screw,panhead |
92501-06055-00 |
US $3.40 |
||
| replacement | |||||
|
04
|
04
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
05
|
05
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
06
|
06
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
06
|
06
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
07
|
07
90334-12009-00
Plug, Straight
|
90334-12009-00 |
— | ||
|
08
|
08
492-15387-00-00
Stopper
|
492-15387-00-00 |
— | ||
|
09
|
09
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
10
|
10
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
11
|
11
90338-16029-00 Plug |
90338-16029-00 |
from US $4.25 |
||
|
12
|
12
97021-06010-00 Bolt(1Kt) |
97021-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
13
|
13
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $1.66 |
||
|
14
|
14
90430-10031-00 Gasket |
90430-10031-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
