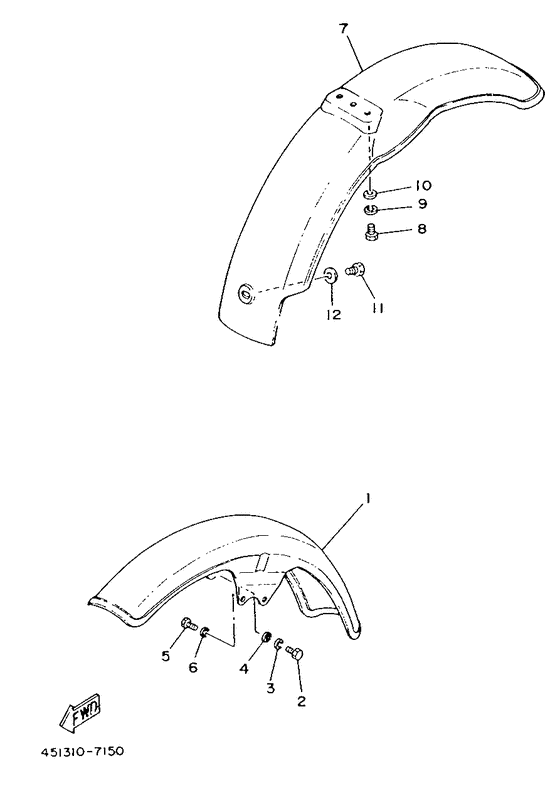

Fender Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-21511-01-00
Fender, Front
|
451-21511-01-00 |
— | ||
|
02
|
02
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
02
|
02
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
02
|
02
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
04
|
04
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
04
|
04
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
04
|
04
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
05
|
05
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
05
|
05
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
05
|
05
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
07
|
07
451-21611-00-00
Fender, Rear
|
451-21611-00-00 |
— | ||
|
08
|
08
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
08
|
08
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
08
|
08
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
09
|
09
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
12
|
12
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
