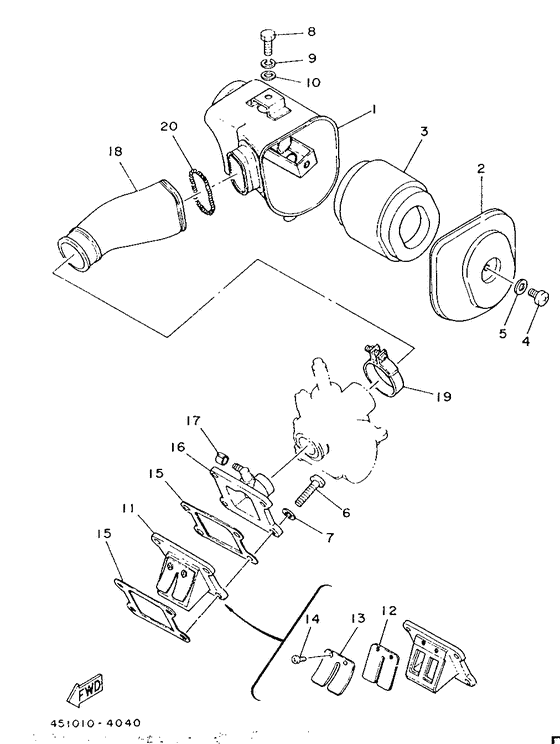

Intake Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-14411-00-00
Case, Air Cleaner 1
|
451-14411-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
451-14412-00-00
Cap, Cleaner Case 1
|
451-14412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
451-14451-00-00
Element, Air Clnr
|
451-14451-00-00 |
— | ||
|
04
|
04
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
05
|
05
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
06
|
06
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
08
|
08
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
08
|
08
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
08
|
08
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
09
|
09
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
353-13610-01-00
Reed Valve Assembly
|
353-13610-01-00 |
— | ||
|
12
|
12
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
13
|
13
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
13
|
13
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
14
|
14
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
15
|
15
353-13621-00-00 Gasket, Valve Seat |
353-13621-00-00 |
from US $5.38 |
||
| replacement | |||||
|
15
|
15
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $5.81 |
||
|
16
|
16
451-13565-00-00
Joint, Carburetor
|
451-13565-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
18
|
18
451-14453-01-00
Joint, Air Clnr 1
|
451-14453-01-00 |
— | ||
|
19
|
19
90460-33087-00 Clamp, Hose |
90460-33087-00 |
from US $6.28 |
||
|
20
|
20
90506-06075-00 Spring, Tension |
90506-06075-00 |
from US $4.68 |
||
