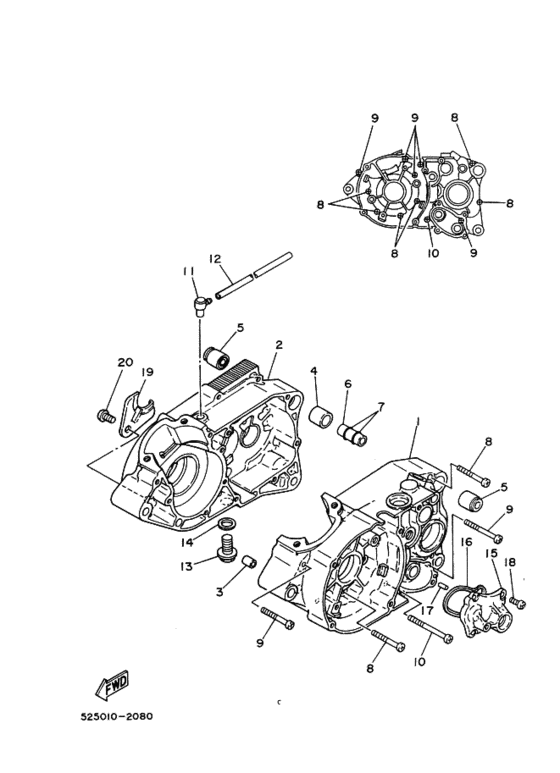

Crankcase Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-15111-01-00
Crankcase 1
クランクケース １; |
525-15111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
クランクケース １; |
999-99999-99-00 |
— | ||
|
2
|
2
525-15121-01-00
Crankcase 2
クランクケース ２; |
525-15121-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
クランクケース ２; |
999-99999-99-00 |
— | ||
|
3
|
3
91830-21014-00 Pin, Dowel |
91830-21014-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
4
|
4
91810-19020-00 Pin, Dowel |
91810-19020-00 |
US $2.13 |
||
| replacements | |||||
|
4
|
4
995-30200-20-00 Pin, Dowel |
995-30200-20-00 |
US $2.13 |
||
|
4
|
4
995-10200-20-00
Pin, Dowel
|
995-10200-20-00 |
— | ||
|
5
|
5
5V7-21486-01-00 Damper 2 |
5V7-21486-01-00 |
from US $23.52 |
||
| replacements | |||||
|
5
|
5
328-15316-00-00
Damper, Engine Mount 1 (328-153)
|
328-15316-00-00 |
— | ||
|
5
|
5
90388-08003-00 Damper |
90388-08003-00 |
from US $19.87 |
||
|
6
|
6
401-15317-00-00 Spacer, Engine Mountスペーサ，エンジンマウント; |
401-15317-00-00 |
from US $11.76 |
||
|
7
|
7
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.70 |
||
|
8
|
8
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
8
|
8
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
9
|
9
92501-06060-00 Screw, Pan Head (92580-06560-00 |
92501-06060-00 |
from US $5.29 |
||
| replacement | |||||
|
9
|
9
985-80065-60-00 Screw, Pan Head (92580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
10
|
10
92501-06070-00 Screw, Pan Head |
92501-06070-00 |
from US $6.52 |
||
| replacement | |||||
|
10
|
10
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
11
|
11
498-15371-00-00 Breatherブリーザ; |
498-15371-00-00 |
from US $3.68 |
||
| replacement | |||||
|
11
|
11
583-15371-00-00 Breatherブリーザ; |
583-15371-00-00 |
from US $1.34 |
||
|
12
|
12
90445-07177-00 Hoseホース; |
90445-07177-00 |
US $4.39 |
||
| replacement | |||||
|
12
|
12
90445-07MF1-00 Hose (L570)ホース; |
90445-07MF1-00 |
from US $4.39 |
||
|
13
|
13
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
14
|
14
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
15
|
15
437-15419-01-00 Cover, Shifter 1カバー，シフタ １; |
437-15419-01-00 |
from US $67.42 |
||
|
16
|
16
401-15449-00-00 Ring, Rubberリング，ラバー; |
401-15449-00-00 |
from US $18.84 |
||
|
17
|
17
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.84 |
||
|
18
|
18
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
19
|
19
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
20
|
20
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
