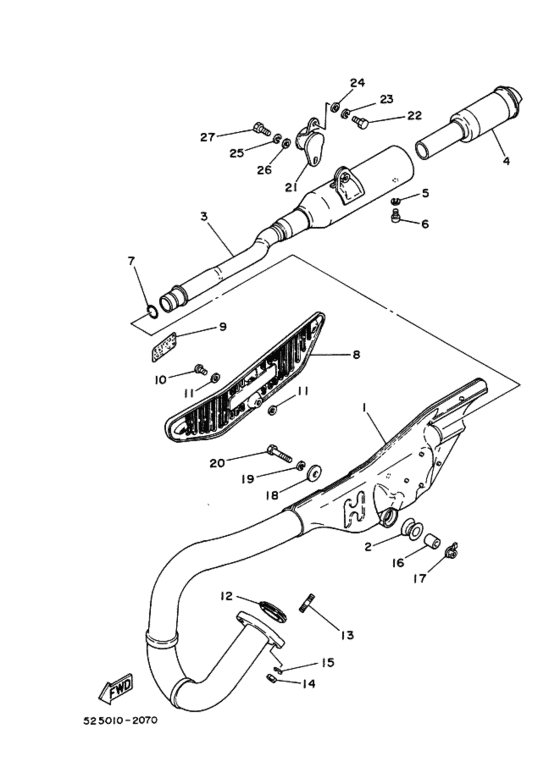

Exhaust Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-14610-02-00
Exhaust Pipe Assy 1
エキゾーストパイプアセンブリ １; |
525-14610-02-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
エキゾーストパイプアセンブリ １; |
999-99999-99-00 |
— | ||
|
2
|
2
565-14747-00-00 Damper, Mufflerダンパ，マフラー; |
565-14747-00-00 |
from US $7.49 |
||
|
3
|
3
525-14753-00-00
Silencer, Exhaust
サイレンサ，エキゾースト; |
525-14753-00-00 |
— | ||
|
4
|
4
434-14752-00-00
Pipe, Outlet
|
434-14752-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1M1-14752-01-00
Pipe, Outlet
|
1M1-14752-01-00 |
— | ||
|
5
|
5
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
7
|
7
93210-19026-00 O-Ring |
93210-19026-00 |
from US $1.84 |
||
|
8
|
8
525-14718-00-36
Protector, Muffler 1
プロテクタ，マフラー １; ホワイト |
525-14718-00-36 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
プロテクタ，マフラー １; ホワイト |
999-99999-99-00 |
— | ||
|
9
|
9
525-14729-20-00
Emblem, Protector
|
525-14729-20-00 |
— | ||
|
10
|
10
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
10
|
10
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.21 |
||
|
10
|
10
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
11
|
11
902-02060-10-00
Washer Plate 178147660000
ワツシヤ，プレート; |
902-02060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
902-02051-87-00 Washer, Plateワツシヤ，プレート; |
902-02051-87-00 |
from US $1.28 |
||
|
12
|
12
152-14613-00-00
Gasket, Exhaust Pipe
ガスケツト，エキゾーストパイプ; |
152-14613-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3PA-14613-10-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
3PA-14613-10-00 |
from US $9.35 |
||
|
13
|
13
90116-06016-00 Bolt, Studボルト，スタツヂ; |
90116-06016-00 |
from US $3.40 |
||
|
14
|
14
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
903-87082-58-00 Collarカラー; |
903-87082-58-00 |
from US $3.40 |
||
|
17
|
17
525-14681-00-00
Nut
|
525-14681-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90201-08113-00 Washer, Plateワツシヤ，プレート; |
90201-08113-00 |
US $1.98 |
||
| replacement | |||||
|
18
|
18
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $1.98 |
||
|
19
|
19
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
20
|
20
97301-08035-00 Bolt |
97301-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
20
|
20
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
21
|
21
363-14782-10-00
Stay 5
ステー ５; |
363-14782-10-00 |
— | ||
|
22
|
22
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
23
|
23
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
25
|
25
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
26
|
26
929-01082-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-01082-00-00 |
— | ||
| replacements | |||||
|
26
|
26
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.07 |
||
|
26
|
26
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.56 |
||
|
27
|
27
973-01080-18-00
Bolt, Hex
|
973-01080-18-00 |
— | ||
| replacement | |||||
|
27
|
27
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
