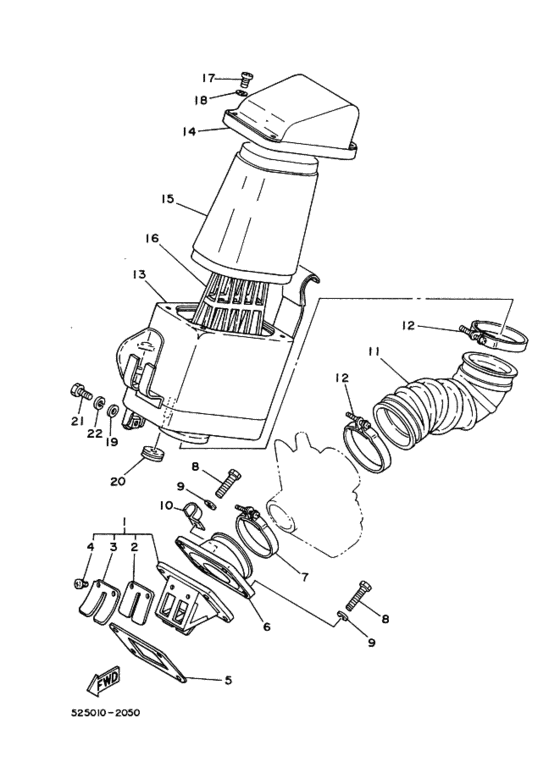

Intake Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
314-13610-01-00 Reed Valve Assemblyリードバルブアセンブリ; |
314-13610-01-00 |
from US $134.50 |
||
| replacement | |||||
|
1
|
1
53V-13610-00-00 Reed Valve Assemblyリードバルブアセンブリ; |
53V-13610-00-00 |
from US $201.06 |
||
|
2
|
2
314-13613-01-00 Reed, Valve．リード，バルブ; |
314-13613-01-00 |
from US $23.66 |
||
|
3
|
3
314-13616-01-00
Stopper, Reed Valve
．ストツパ，リードバルブ; |
314-13616-01-00 |
— | ||
| replacement | |||||
|
3
|
3
10X-13616-00-00
Stopper, Reed Valve
．ストツパ，リードバルブ; |
10X-13616-00-00 |
— | ||
|
4
|
4
97602-03108-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
97602-03108-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98580-03008-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
314-13621-02-00 Gasket, Valve Seatガスケツト，バルブシート; |
314-13621-02-00 |
from US $4.11 |
||
| replacement | |||||
|
5
|
5
87A-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
87A-13621-00-00 |
from US $2.32 |
||
|
6
|
6
525-13565-01-00
Joint, Carburetor
|
525-13565-01-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90460-43053-00 Clamp, Hoseクランプ，ホース; |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
7
|
7
90460-43179-00 Clamp, Hoseクランプ，ホース; |
90460-43179-00 |
from US $7.65 |
||
|
8
|
8
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
11
|
11
525-14453-00-00
Joint, Air Clnr 1
ジヨイント，エアクリーナー １; |
525-14453-00-00 |
— | ||
|
12
|
12
90460-49058-00 Clamp, Hoseクランプ，ホース; |
90460-49058-00 |
from US $2.98 |
||
|
13
|
13
525-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナー １; |
525-14411-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
ケース，エアクリーナー １; |
999-99999-99-00 |
— | ||
|
14
|
14
525-14412-01-00
Cap, Cleaner Case 1
キヤツプ，クリーナーケース １; |
525-14412-01-00 |
— | ||
|
15
|
15
525-14451-01-00 Element, Air Clnrエレメント，エアクリーナー; |
525-14451-01-00 |
from US $28.42 |
||
| replacement | |||||
|
15
|
15
525-14451-02-00 ELEMENT, AIR CLEANERエレメント，エアクリーナー; |
525-14451-02-00 |
US $18.76 |
||
|
16
|
16
525-14458-01-00
Guide
|
525-14458-01-00 |
— | ||
|
17
|
17
985-01040-08-00
Screw, Pan Head
|
985-01040-08-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
18
|
18
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
19
|
19
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
20
|
20
90480-10091-00 Grommet (214-21746-00) |
90480-10091-00 |
from US $2.83 |
||
|
21
|
21
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
22
|
22
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
