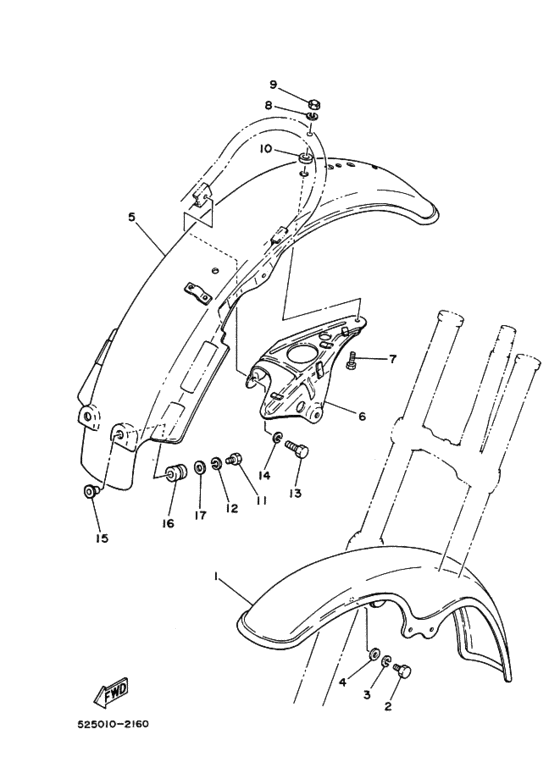

ﾌﾛﾝﾄﾌｴﾝﾀﾞ. ﾘﾔﾌｴﾝﾀﾞ Diagram Yamaha TY
- Year
- 1980
- Colour
- White (WW; 0036)
- Model code
- 5250
- Sales region
- Japan (010)
- Engine Capacity
- 175
- Color Variant
- A
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
493-21510-00-36
Front Fender Comp
フロントフエンダコンプリート; ホワイト |
493-21510-00-36 |
— | ||
| replacement | |||||
|
1
|
1
493-21510-00-00
Fender Front
フロントフエンダコンプリート; ホワイト |
493-21510-00-00 |
— | ||
|
2
|
2
97301-06018-00 Bolt |
97301-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
3
|
3
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
4
|
4
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
4
|
4
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
525-21610-00-36
Fender, Rear
リヤフエンダコンプリート; ホワイト |
525-21610-00-36 |
— | ||
|
6
|
6
525-21617-00-00
Bracket, Fender
|
525-21617-00-00 |
— | ||
|
7
|
7
97301-06018-00 Bolt |
97301-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
8
|
8
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
95301-06800-00 Nutナツト，クラウン; |
95301-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
95380-06800-00 Nut (J17)ナツト，クラウン; |
95380-06800-00 |
from US $1.07 |
||
|
10
|
10
322-21541-00-00 Damper 1 |
322-21541-00-00 |
from US $4.96 |
||
|
11
|
11
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
12
|
12
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
14
|
14
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
903-87073-91-00 Collarカラー; |
903-87073-91-00 |
from US $1.84 |
||
|
16
|
16
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
17
|
17
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
