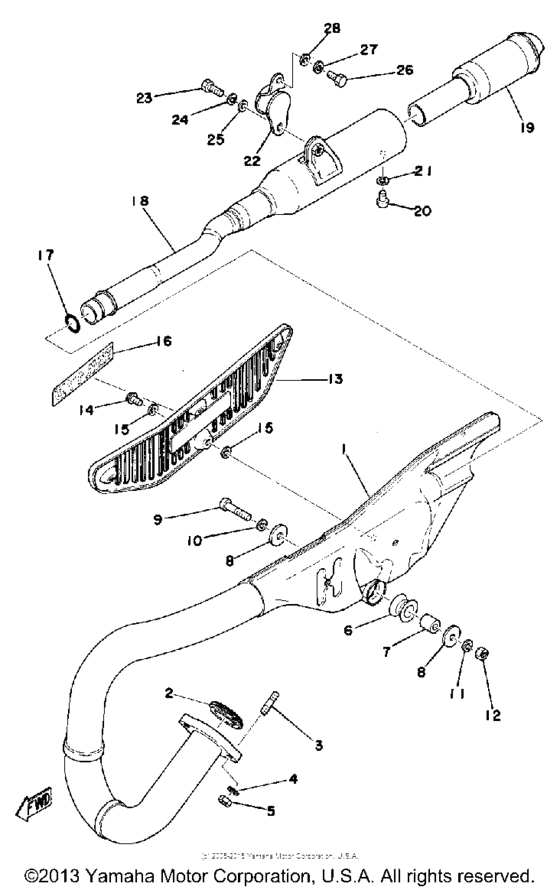

Exhaust Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 175
- Model
- TY175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
525-14610-01-00
Exhaust Pipe Assembly L
|
525-14610-01-00 |
— | ||
|
2
|
2
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
3
|
3
90116-06016-00 Bolt, Stud |
90116-06016-00 |
from US $3.40 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
6
|
6
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $9.49 |
||
|
7
|
7
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
8
|
8
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
8
|
8
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
9
|
9
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
9
|
9
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
10
|
10
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
525-14681-00-00
Nut
|
525-14681-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
525-14718-00-26
Protector, Muff 1
COMP. YELLOW |
525-14718-00-26 |
— | ||
|
14
|
14
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
14
|
14
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
14
|
14
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
15
|
15
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
16
|
16
525-21787-00-00
Emblem 7
|
525-21787-00-00 |
— | ||
|
17
|
17
93210-19026-00 O-Ring |
93210-19026-00 |
from US $1.84 |
||
|
18
|
18
525-14753-00-00
Silencer, Exhaust
|
525-14753-00-00 |
— | ||
|
19
|
19
1M1-14752-01-00
Pipe, Outlet
|
1M1-14752-01-00 |
— | ||
|
20
|
20
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
363-14782-10-00
Stay 5
|
363-14782-10-00 |
— | ||
|
23
|
23
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
23
|
23
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
26
|
26
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
26
|
26
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
28
|
28
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
