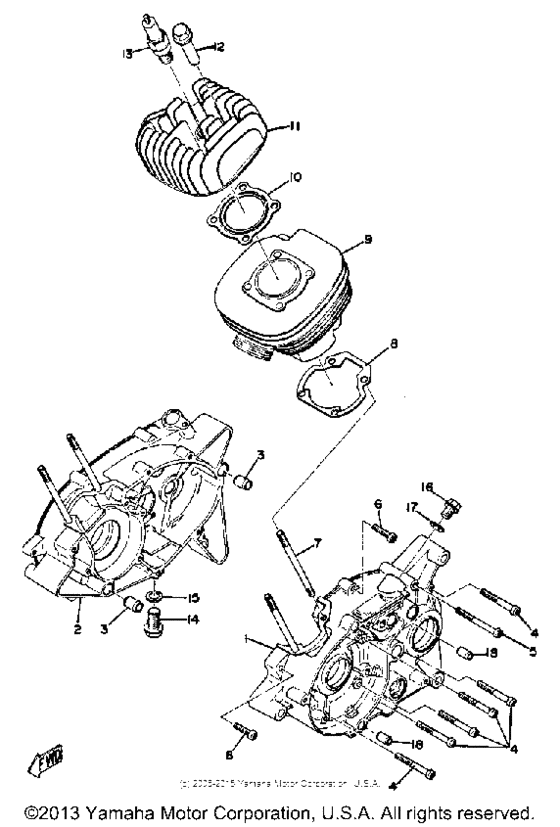

Cylinder - crankcase Diagram Yamaha TY
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 800
- Model
- TY80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
374-15111-00-00
Crankcase 1
|
374-15111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
374-15111-01-00
Crankcase 1
|
374-15111-01-00 |
— | ||
|
2
|
2
374-15121-02-00
Crankcase 2
|
374-15121-02-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
5
|
5
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
5
|
5
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
6
|
6
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
7
|
7
90116-06139-00
Bolt, Stud
|
90116-06139-00 |
— | ||
|
8
|
8
367-11351-00-00 Gasket,cylinder |
367-11351-00-00 |
from US $7.08 |
||
| replacement | |||||
|
8
|
8
367-11351-01-00 Gasket, Cylinder |
367-11351-01-00 |
from US $5.29 |
||
|
9
|
9
451-11311-00-00
Cylinder 1
|
451-11311-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
598-11181-00-00
Gasket, Cylinder Head 1
|
598-11181-00-00 |
— | ||
|
11
|
11
451-11111-00-00
Head, Cylinder 1
|
451-11111-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90179-06180-00
Nut, Spec''l Shape (90179-06005
90179-06005 |
90179-06180-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
90179-06005 |
999-99999-99-00 |
— | ||
|
13
|
13
NGK-B7HS0-00-00
Ngk Spark Plug B7Hs
B7HS |
NGK-B7HS0-00-00 |
— | ||
| replacement | |||||
|
13
|
13
B7H-S0000-00-00 Ngk Spark Plug B7HsB7HS |
B7H-S0000-00-00 |
US $26.28 |
||
|
13
|
13
NGK-B6HS0-00-00
B6Hs Ngk 4Pk
4PK |
NGK-B6HS0-00-00 |
— | ||
| replacements | |||||
|
13
|
13
B6H-S0000-00-00 element4PK |
B6H-S0000-00-00 |
US $4.23 |
||
|
13
|
13
BR6-HS000-00-00 Plug, Spark (Ngk Br6Hs)4PK |
BR6-HS000-00-00 |
US $27.36 |
||
|
14
|
14
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
15
|
15
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
16
|
16
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $3.12 |
||
|
17
|
17
90430-10031-00 Gasket |
90430-10031-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
18
|
18
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
18
|
18
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
18
|
18
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
