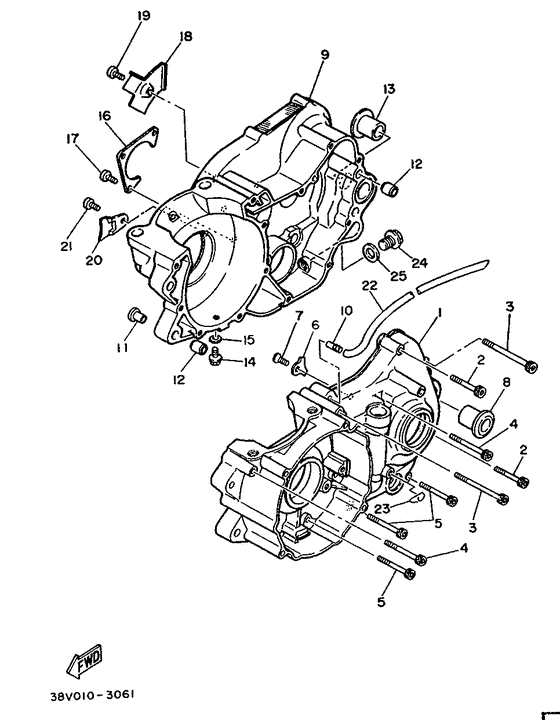

Crankcase Diagram Yamaha TY250
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2AF
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38V-15111-01-00
Crankcase 1
|
38V-15111-01-00 |
— | ||
|
02
|
02
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
02
|
02
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
03
|
03
913-16060-70-00
Bolt
|
913-16060-70-00 |
— | ||
| replacement | |||||
|
03
|
03
91317-06070-00 Bolt |
91317-06070-00 |
from US $1.50 |
||
|
04
|
04
913-16060-55-00
Bolt
|
913-16060-55-00 |
— | ||
| replacement | |||||
|
04
|
04
91317-06055-00 Bolt |
91317-06055-00 |
from US $1.52 |
||
|
05
|
05
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
05
|
05
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
05
|
05
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
06
|
06
3R4-15383-01-00 Plate, Bearing Cover |
3R4-15383-01-00 |
from US $5.81 |
||
| replacement | |||||
|
06
|
06
3AK-15383-01-00 Plate, Bearing Cover |
3AK-15383-01-00 |
from US $5.81 |
||
|
07
|
07
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
07
|
07
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
08
|
08
90387-160H4-00
Collar
|
90387-160H4-00 |
— | ||
|
09
|
09
38V-15121-01-00
Crankcase 2
|
38V-15121-01-00 |
— | ||
|
10
|
10
137-13115-00-00 Connector, Suction Pipe |
137-13115-00-00 |
US $3.26 |
||
| replacement | |||||
|
10
|
10
137-13115-01-00 Connector, Suction Pipe |
137-13115-01-00 |
from US $1.70 |
||
|
11
|
11
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
12
|
12
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
12
|
12
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
13
|
13
90387-160H4-00
Collar
|
90387-160H4-00 |
— | ||
|
14
|
14
95801-06008-00 Bolt, Flange |
95801-06008-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
14
|
14
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
15
|
15
90430-06192-00 Gasket |
90430-06192-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
16
|
16
23X-15381-00-00
Plate, Bearing Cover
|
23X-15381-00-00 |
— | ||
|
17
|
17
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
18
|
18
3R4-15118-00-00 Holder |
3R4-15118-00-00 |
from US $3.19 |
||
|
19
|
19
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
20
|
20
5X5-15113-00-00
Plate
|
5X5-15113-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
22
|
22
90445-081A0-00 Hose (L460) |
90445-081A0-00 |
from US $4.39 |
||
| replacement | |||||
|
22
|
22
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.72 |
||
|
23
|
23
90465-20035-00
Clamp
|
90465-20035-00 |
— | ||
|
24
|
24
90340-12095-00 Plug, Straight Screw |
90340-12095-00 |
from US $1.70 |
||
| replacements | |||||
|
24
|
24
90340-12097-00 Plug, Straight Screw |
90340-12097-00 |
from US $1.81 |
||
|
24
|
24
90340-12006-00 Plug, Straight Screw |
90340-12006-00 |
from US $1.66 |
||
|
25
|
25
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
