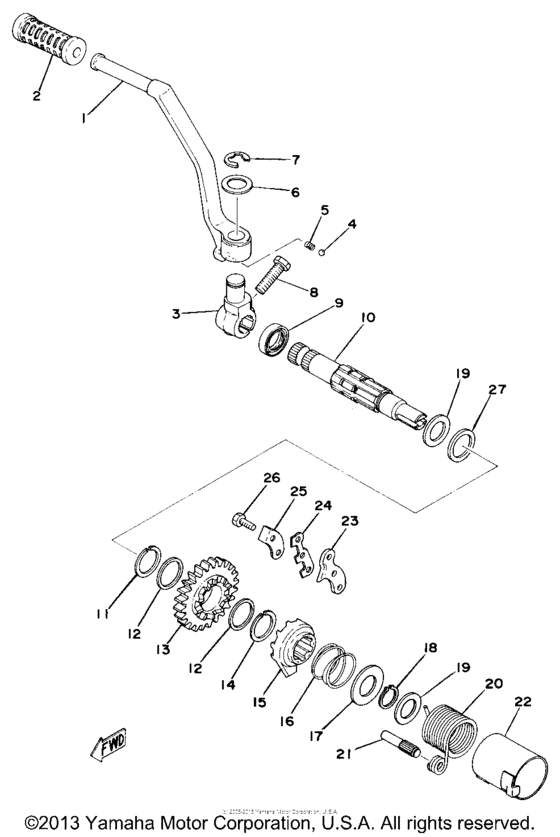

Kick starter Diagram Yamaha TY250
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
434-15620-00-00
Crank, Kick
|
434-15620-00-00 |
— | ||
|
2
|
2
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $4.58 |
||
|
3
|
3
434-15620-00-00
Crank, Kick
|
434-15620-00-00 |
— | ||
|
4
|
4
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.63 |
||
|
5
|
5
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
6
|
6
90201-17256-00 Washer, Plate |
90201-17256-00 |
from US $3.09 |
||
|
7
|
7
93430-12022-00
Circlip, E-Type
|
93430-12022-00 |
— | ||
|
8
|
8
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
8
|
8
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
8
|
8
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
8
|
8
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
9
|
9
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
9
|
9
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
10
|
10
434-15661-00-00
Axle, Kick
|
434-15661-00-00 |
— | ||
|
11
|
11
90201-256K6-00 Washer, Plate (0.9T)0.9T |
90201-256K6-00 |
from US $1.70 |
||
|
12
|
12
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
13
|
13
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.81 |
||
|
14
|
14
434-15641-00-00
Gear, Kick
|
434-15641-00-00 |
— | ||
|
15
|
15
93440-25020-00 Circlip |
93440-25020-00 |
from US $1.70 |
||
|
16
|
16
363-15671-01-00 Wheel, Ratchet |
363-15671-01-00 |
from US $69.49 |
||
| replacement | |||||
|
16
|
16
583-15671-00-00 Wheel, Ratchet |
583-15671-00-00 |
from US $69.49 |
||
|
17
|
17
90501-23143-00 Spring, Compression (363-15675-363-15675- |
90501-23143-00 |
from US $1.56 |
||
|
18
|
18
363-15676-00-00 Cover, Spring |
363-15676-00-00 |
from US $2.41 |
||
|
19
|
19
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
20
|
20
90201-20278-00 Washer, Plate |
90201-20278-00 |
from US $1.70 |
||
|
21
|
21
905-08322-08-00
Spring, Torsion
|
905-08322-08-00 |
— | ||
|
22
|
22
364-15668-00-00
Stopper
|
364-15668-00-00 |
— | ||
|
23
|
23
434-15664-00-00
Guide, Spring
|
434-15664-00-00 |
— | ||
|
24
|
24
363-15674-00-00
Guide, Ratchet Wheel
|
363-15674-00-00 |
— | ||
|
25
|
25
363-15686-00-00 Washer, Lock |
363-15686-00-00 |
from US $3.26 |
||
|
26
|
26
434-15668-00-00 Stopper |
434-15668-00-00 |
from US $3.40 |
||
|
27
|
27
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
