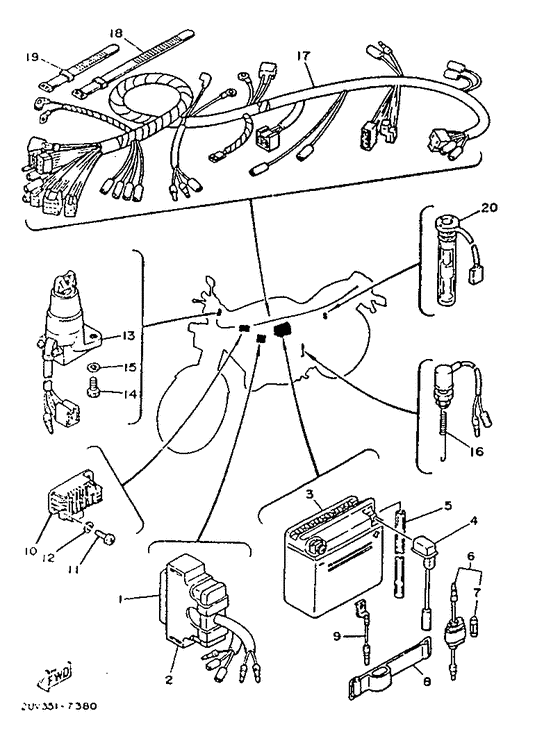

Electrical 1 Diagram Yamaha TZR80
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2UV
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2UV-85540-M0-00
C.d.i. Unit Assy
|
2UV-85540-M0-00 |
— | ||
|
02
|
02
1GU-85546-00-00
Band
|
1GU-85546-00-00 |
— | ||
|
03
|
03
2RN-H2110-00-00
Battery Assy
|
2RN-H2110-00-00 |
— | ||
| replacements | |||||
|
03
|
03
12N-53BY0-00-00
CB18A GS BATTERY
|
12N-53BY0-00-00 |
— | ||
|
03
|
03
235-82110-09-00
Battery (12N5-3B)
|
235-82110-09-00 |
— | ||
|
04
|
04
2RN-H2115-00-00
Wire, Plus Lead
|
2RN-H2115-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
90445-08171-00
Pipe, Breather
|
90445-08171-00 |
— | ||
| replacements | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
2RH-21826-00-00
Pipe, Breather
|
2RH-21826-00-00 |
— | ||
|
06
|
06
1E2-82150-00-00 Fuse Holder Assy |
1E2-82150-00-00 |
from US $11.76 |
||
| replacement | |||||
|
06
|
06
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
07
|
07
148-82151-00-00 Fuse (12V-20A) |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
07
|
07
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
08
|
08
2RN-H2131-10-00
Band, Battery
|
2RN-H2131-10-00 |
— | ||
|
09
|
09
2RN-H2116-00-00
Wire, Minus Lead
|
2RN-H2116-00-00 |
— | ||
| replacement | |||||
|
09
|
09
2J2-82116-00-00 Wire, Minus Lead |
2J2-82116-00-00 |
US $13.63 |
||
|
10
|
10
30W-81960-60-00
Rectifier & Regulator Assy
|
30W-81960-60-00 |
— | ||
|
11
|
11
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
11
|
11
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
11
|
11
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
2RM-82501-00-00
Main Switch Steering Lock
|
2RM-82501-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3TY-82501-00-00
Main Switch Steering Lock
|
3TY-82501-00-00 |
— | ||
|
14
|
14
97002-06016-00 P53 Bolt |
97002-06016-00 |
US $1.28 |
||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
2RN-H2530-00-00
Stop Switch Assy
|
2RN-H2530-00-00 |
— | ||
|
17
|
17
2UV-H2590-00-00
Wire Harness Assy
|
2UV-H2590-00-00 |
— | ||
| replacement | |||||
|
17
|
17
2UV-H2590-01-00
Wire Harness Assy
|
2UV-H2590-01-00 |
— | ||
|
18
|
18
2RN-H2591-00-00
Band
|
2RN-H2591-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
|
20
|
20
2E7-85720-02-00
Oil Lvl Gauge Assembly
|
2E7-85720-02-00 |
— | ||
