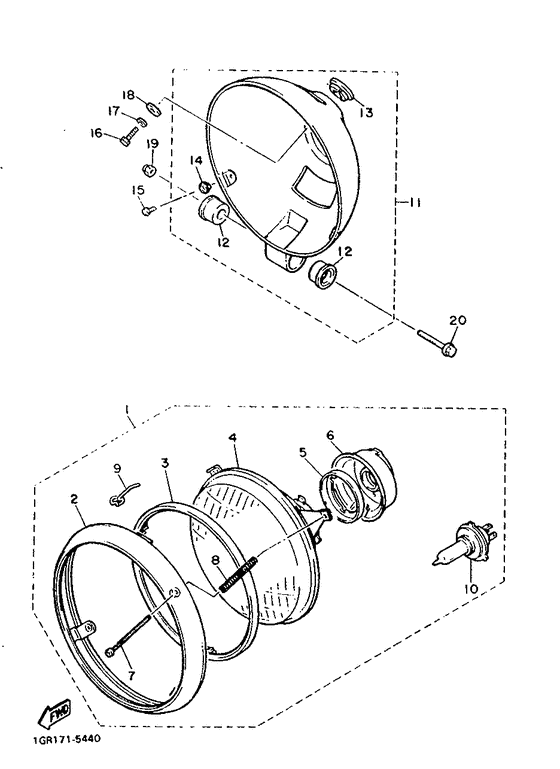

Headlight Diagram Yamaha VMX12 V-MAX
- Year
- 1992
- Colour
- Deep Scarlet (DPS; 00KU)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2EN-84303-F0-00
Headlight Unit Assy
|
2EN-84303-F0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
42X-84315-01-00 Rim, Headlight |
42X-84315-01-00 |
from US $69.49 |
||
|
03
|
03
5Y3-84395-00-00 Ring, Retaining |
5Y3-84395-00-00 |
from US $38.13 |
||
|
04
|
04
2AE-84321-G0-00 Lens AssyLens, headlight |
2AE-84321-G0-00 |
US $276.32 |
||
| replacement | |||||
|
04
|
04
2AE-84320-G0-00 Lens Assy |
2AE-84320-G0-00 |
US $315.94 |
||
|
05
|
05
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
06
|
06
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
07
|
07
341-84331-60-00
Screw, Adjusting
|
341-84331-60-00 |
— | ||
| replacement | |||||
|
07
|
07
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
08
|
08
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
09
|
09
1M1-84124-60-00 Spring, Set |
1M1-84124-60-00 |
from US $6.38 |
||
|
11
|
11
1FK-84330-00-00 Body Assy |
1FK-84330-00-00 |
US $108.43 |
||
| replacement | |||||
|
11
|
11
42X-84330-01-00 Body Assy |
42X-84330-01-00 |
from US $147.83 |
||
|
12
|
12
42X-84345-00-00 Damper, Headlight |
42X-84345-00-00 |
from US $3.68 |
||
|
13
|
13
42X-84366-00-00 Damper, Headlight 1 |
42X-84366-00-00 |
from US $8.78 |
||
|
14
|
14
1FK-84338-00-00 Collar, Body Fitting |
1FK-84338-00-00 |
from US $1.70 |
||
|
15
|
15
90157-05084-00 Screw, Pan Head |
90157-05084-00 |
from US $2.69 |
||
|
16
|
16
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
90201-061H3-00 Washer, Plate |
90201-061H3-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
19
|
19
90176-06041-00 Nut, Crown (21G) |
90176-06041-00 |
from US $3.40 |
||
|
20
|
20
90105-06375-00
Bolt, Flange
|
90105-06375-00 |
— | ||
