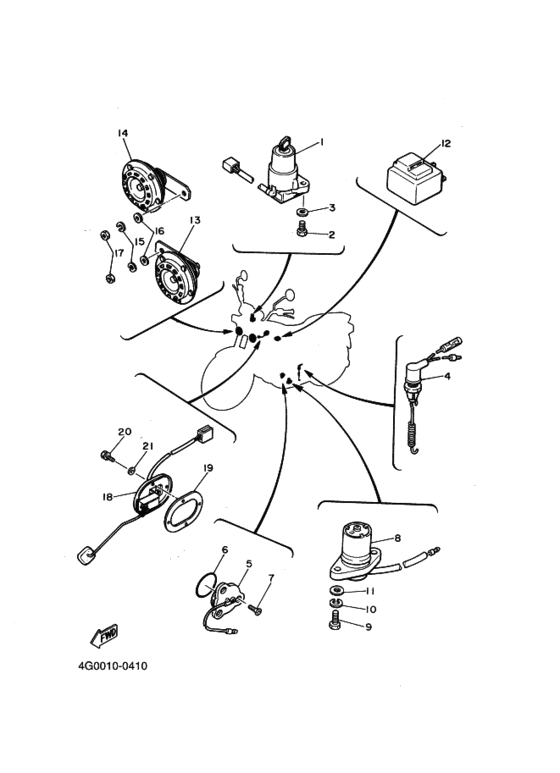

Electrical 2 Diagram Yamaha XJ400
- Year
- 1981
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 5M8
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y6-62508-80-00
ﾒｲﾝｽｲﾂﾁｱｾﾝﾌﾞﾘ
メインスイツチアセンブリ; |
3Y6-62508-80-00 |
— | ||
|
2
|
2
97322-06016-00 Bolt |
97322-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
2
|
2
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
2
|
2
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
2
|
2
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
3
|
3
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
2F1-82530-00-00 Stop Switch Assembly (2F1-82530 |
2F1-82530-00-00 |
from US $23.69 |
||
| replacements | |||||
|
4
|
4
2F1-82530-02-00 Stop Switch Assembly (2F1-82530 |
2F1-82530-02-00 |
from US $13.90 |
||
|
4
|
4
2F1-82530-03-00 Stop Switch Assy |
2F1-82530-03-00 |
US $49.05 |
||
|
5
|
5
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $14.82 |
||
|
6
|
6
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
7
|
7
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
7
|
7
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.36 |
||
|
8
|
8
4U8-85720-00-00
Oil Level Gauge Assembly
|
4U8-85720-00-00 |
— | ||
|
9
|
9
97321-06020-00 Bolt |
97321-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
929-01066-00-00
Washer
ワツシヤ，プレ−ト; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレ−ト; |
902-01061-A5-00 |
from US $2.08 |
||
|
11
|
11
92907-06600-00 Washer, Plateワツシヤ，プレ−ト; |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
4G0-83350-20-00 Flasher Relay Assy |
4G0-83350-20-00 |
from US $57.85 |
||
| replacement | |||||
|
12
|
12
30X-83350-20-00
Flasher Relay Assy
|
30X-83350-20-00 |
— | ||
|
13
|
13
4G0-83371-20-00
Horn
ハイト−ン |
4G0-83371-20-00 |
— | ||
|
14
|
14
4G0-83371-30-00
Horn
ロ−ト−ン |
4G0-83371-30-00 |
— | ||
|
15
|
15
929-06081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06081-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
16
|
16
92906-08200-00 Washerワツシヤ，プレ−ン; |
92906-08200-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
92907-08200-00 Washerワツシヤ，プレ−ン; |
92907-08200-00 |
from US $1.36 |
||
|
17
|
17
95306-08800-00 Nut |
95306-08800-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95307-08800-00 Nut |
95307-08800-00 |
from US $1.56 |
||
|
18
|
18
4G0-85752-00-00
Sender Unit Assembly, Fuel Mete
センダユニツトアセンブリ，フユエルメ−タ; |
4G0-85752-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
センダユニツトアセンブリ，フユエルメ−タ; |
999-99999-99-00 |
— | ||
|
19
|
19
2H7-85753-00-00 Gasket, Sender Unit |
2H7-85753-00-00 |
from US $12.04 |
||
|
20
|
20
95802-06014-00 Bolt, Flange |
95802-06014-00 |
from US $1.18 |
||
| replacement | |||||
|
20
|
20
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
21
|
21
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
21
|
21
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
