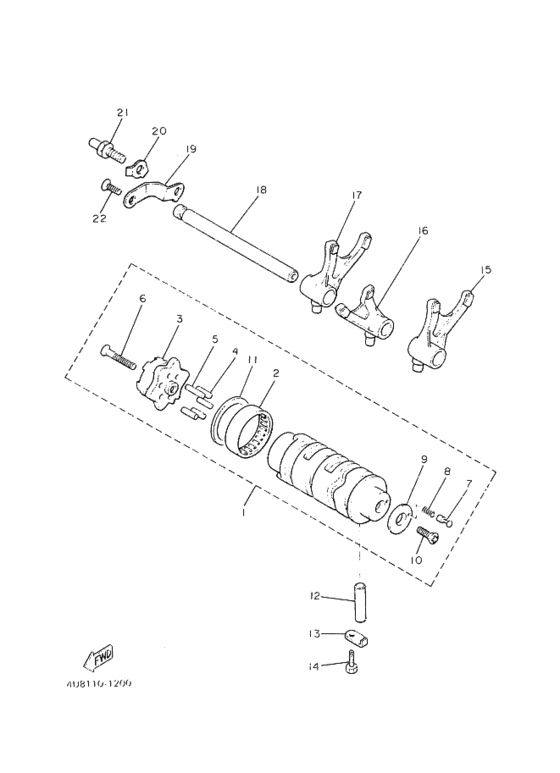

ｼﾌﾄｶﾑ.ﾌｵ-ｸ Diagram Yamaha XJ400
- Year
- 1981
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 5M8
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-18540-01-00
Shift Cam Assembly
|
4G0-18540-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
93306-90501-00 Bearing．ベアリング; |
93306-90501-00 |
from US $20.40 |
||
|
3
|
3
4G0-18185-01-00
Segment
．セグメント; |
4G0-18185-01-00 |
— | ||
|
4
|
4
93604-16092-00 Pin, Dowel．ピン，ダウエル; |
93604-16092-00 |
from US $1.56 |
||
|
5
|
5
93604-10011-00 Pin, Dowel．ピン，ダウエル; |
93604-10011-00 |
from US $1.70 |
||
|
6
|
6
98701-05035-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98701-05035-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
98707-05035-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-05035-00 |
from US $1.50 |
||
|
7
|
7
278-18542-00-00 Point, Neutral．ポイント，ニユ−トラル; |
278-18542-00-00 |
from US $1.94 |
||
| replacement | |||||
|
7
|
7
4UN-18542-00-00 Point, Neutral．ポイント，ニユ−トラル; |
4UN-18542-00-00 |
from US $1.94 |
||
|
8
|
8
90501-06022-00 Spring, Compression．スプリング，コンプレツシヨン; |
90501-06022-00 |
from US $1.70 |
||
|
9
|
9
278-18566-00-00
Plate, Side 2
．プレ−ト，サイド ２; |
278-18566-00-00 |
— | ||
|
10
|
10
98701-05016-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
10
|
10
98707-05016-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-05016-00 |
from US $1.35 |
||
|
10
|
10
90151-05055-00 Screw, Countersunk(3Ac)．スクリユ，フラツトヘツド; |
90151-05055-00 |
from US $2.27 |
||
|
11
|
11
117-15644-00-00 Washer, Plate (T=1.0)．シム; |
117-15644-00-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90201-253K0-00 Washer, Plate (T=1.0)．シム; |
90201-253K0-00 |
from US $1.81 |
||
|
12
|
12
93608-36165-00
Pin, Dowel
|
93608-36165-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2H7-15531-00-00 Plate, Stopper |
2H7-15531-00-00 |
from US $2.11 |
||
|
14
|
14
97301-06015-00 Bolt |
97301-06015-00 |
US $1.28 |
||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
15
|
15
4G0-18511-00-00
Fork, Shift 1
|
4G0-18511-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
4G0-18512-00-00
Fork, Shift 2
|
4G0-18512-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
4G0-18513-00-00
Fork, Shift 3
|
4G0-18513-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
4G0-18531-00-00 Bar, Shift Fork Guide 1 |
4G0-18531-00-00 |
from US $24.51 |
||
| replacement | |||||
|
18
|
18
4BR-18531-00-00 Bar, Shift Fork Guide 1 |
4BR-18531-00-00 |
from US $22.30 |
||
|
19
|
19
4G0-18536-00-00
Stopper, Shift Bar
|
4G0-18536-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90215-18178-00 Washer, Lock |
90215-18178-00 |
from US $1.98 |
||
|
21
|
21
4G0-18127-00-00 Stopper, Screw |
4G0-18127-00-00 |
from US $6.94 |
||
| replacement | |||||
|
21
|
21
5VK-18127-00-00 Stopper, Screw |
5VK-18127-00-00 |
from US $6.94 |
||
|
22
|
22
92701-06015-00 Screw, Flat Head |
92701-06015-00 |
from US $2.27 |
||
| replacements | |||||
|
22
|
22
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
22
|
22
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
