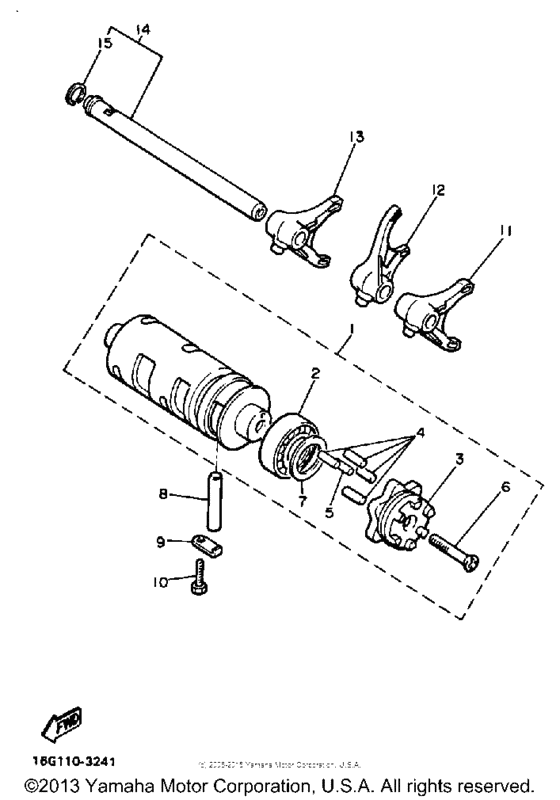

Shift Cam & Fork Diagram Yamaha XJ700 Maxim
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 700
- Model
- XJ700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16G-18540-00-00
Shift Cam Assembly
|
16G-18540-00-00 |
— | ||
|
2
|
2
93306-90501-00 Bearing |
93306-90501-00 |
from US $20.40 |
||
|
3
|
3
16G-18185-00-00
Segment
|
16G-18185-00-00 |
— | ||
|
4
|
4
93604-16092-00 Pin, Dowel |
93604-16092-00 |
from US $1.56 |
||
|
5
|
5
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
6
|
6
98701-05035-00 Screw, Flat Head |
98701-05035-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
98707-05035-00 Screw, Flat Head |
98707-05035-00 |
from US $1.50 |
||
|
7
|
7
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.81 |
||
|
8
|
8
93608-43157-00 Pin, Dowel |
93608-43157-00 |
from US $3.68 |
||
|
9
|
9
2H7-15531-00-00 Plate, Stopper |
2H7-15531-00-00 |
from US $2.11 |
||
|
10
|
10
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
11
|
11
4H7-18511-01-00 Fork,shift 1 |
4H7-18511-01-00 |
from US $58.99 |
||
| replacement | |||||
|
11
|
11
4KM-18511-00-00 Fork, Shift 1 |
4KM-18511-00-00 |
from US $58.99 |
||
|
12
|
12
4H7-18512-01-00 Fork,shift 2 |
4H7-18512-01-00 |
from US $62.86 |
||
| replacement | |||||
|
12
|
12
4KM-18512-00-00 Fork, Shift 2 |
4KM-18512-00-00 |
from US $53.14 |
||
|
13
|
13
4H7-18513-01-00 Frk,shft 3 |
4H7-18513-01-00 |
from US $58.99 |
||
| replacement | |||||
|
13
|
13
4KM-18513-00-00 Fork, Shift 3 |
4KM-18513-00-00 |
from US $53.14 |
||
|
14
|
14
4H7-18531-00-00 Bar,shif Frk Gde 1 |
4H7-18531-00-00 |
from US $33.58 |
||
| replacement | |||||
|
14
|
14
4KM-18531-00-00 Bar, Shift Fork Guide 1 |
4KM-18531-00-00 |
from US $33.58 |
||
|
15
|
15
93440-11029-00 Circlip, Outer |
93440-11029-00 |
from US $1.98 |
||
