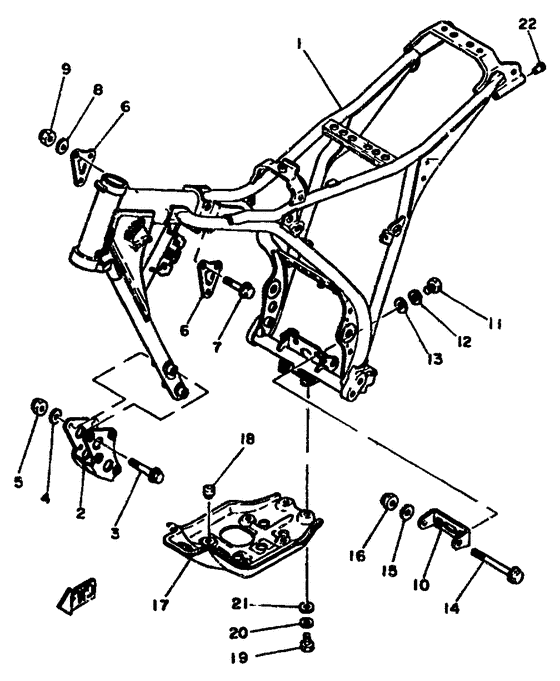

Frame Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G4-21110-E0-33
Frame Comp
|
5G4-21110-E0-33 |
— | ||
|
2
|
2
3Y1-21316-00-00
Stay, Engine 2
|
3Y1-21316-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
95811-08070-00 Bolt, Flange |
95811-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
4
|
4
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
5
|
5
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
6
|
6
3Y1-21315-00-00
Stay, Engine 1
|
3Y1-21315-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
95812-08055-00 Bolt, Flange |
95812-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
8
|
8
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
8
|
8
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
9
|
9
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
10
|
10
3Y1-21475-00-00 Plate, Engine Adjusting |
3Y1-21475-00-00 |
from US $9.34 |
||
|
11
|
11
97322-08016-00 Bolt |
97322-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
12
|
12
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
12
|
12
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
13
|
13
92902-08600-00 Washer, Plate |
92902-08600-00 |
US $1.66 |
||
| replacement | |||||
|
13
|
13
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
14
|
14
90105-08162-00 Bolt, Washer Based |
90105-08162-00 |
from US $5.38 |
||
|
15
|
15
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
16
|
16
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
17
|
17
3Y1-21471-00-33
Protector, Engine
|
3Y1-21471-00-33 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
3Y1-24768-00-00
Stopper
|
3Y1-24768-00-00 |
— | ||
|
19
|
19
97301-06015-00 Bolt |
97301-06015-00 |
US $1.28 |
||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
20
|
20
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
3Y1-21279-00-00
Plug, Blind
|
3Y1-21279-00-00 |
— | ||
