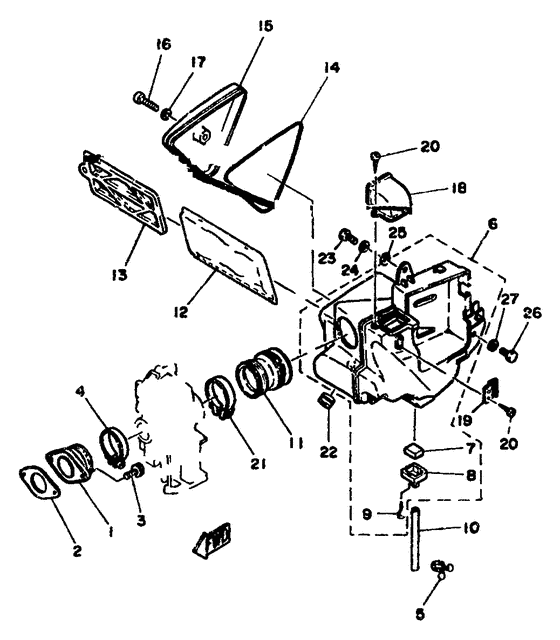

Intake Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y1-13586-00-00 Joint, Carburetor 1 |
3Y1-13586-00-00 |
from US $66.29 |
||
|
2
|
2
3Y1-13556-01-00 Gasket, Manifold |
3Y1-13556-01-00 |
from US $5.58 |
||
| replacement | |||||
|
2
|
2
3HT-13556-00-00 Gasket, Manifold |
3HT-13556-00-00 |
from US $8.93 |
||
|
3
|
3
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
4
|
4
90460-49160-00 Clamp, Hose |
90460-49160-00 |
from US $11.76 |
||
| replacement | |||||
|
4
|
4
904-60492-48-00
Clamp, Hose
|
904-60492-48-00 |
— | ||
|
5
|
5
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
6
|
6
3Y1-14401-01-00
Air Clnr Case Assembly
|
3Y1-14401-01-00 |
— | ||
|
7
|
7
3Y1-14462-00-00
New Genuine Part
|
3Y1-14462-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
3Y1-14419-00-00
Pipe
|
3Y1-14419-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
97701-30520-00 Screw, Panhead TappingScrew, tapping (part no. for xt500 `79/78) |
97701-30520-00 |
from US $1.28 |
||
| replacements | |||||
|
9
|
9
97706-30620-00 Screw, Tapping |
97706-30620-00 |
from US $1.28 |
||
|
9
|
9
97780-30120-00 Screw, Panhead Tap |
97780-30120-00 |
from US $1.84 |
||
|
10
|
10
904-46110-21-00
Hose
|
904-46110-21-00 |
— | ||
| replacement | |||||
|
10
|
10
91A21-07020-00 Hose |
91A21-07020-00 |
from US $4.30 |
||
|
11
|
11
3Y1-14453-00-00
Joint, Air Clnr 1
|
3Y1-14453-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
3Y1-14451-00-00 Element, Air Clnr |
3Y1-14451-00-00 |
from US $25.54 |
||
| replacement | |||||
|
12
|
12
3Y1-14451-01-00 |
3Y1-14451-01-00 |
US $19.49 |
||
|
13
|
13
3Y1-14458-00-00
Guide, Element
|
3Y1-14458-00-00 |
— | ||
|
14
|
14
93211-05393-00 O-Ring |
93211-05393-00 |
from US $6.50 |
||
| replacement | |||||
|
14
|
14
93211-066A9-00 O-Ring |
93211-066A9-00 |
from US $6.66 |
||
|
15
|
15
3Y1-14412-00-00
Cap, Cleaner Case 1
|
3Y1-14412-00-00 |
— | ||
|
16
|
16
92506-06035-00 Screw |
92506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
16
|
16
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
17
|
17
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
3Y1-14431-00-00
Silencer, Intake 1
|
3Y1-14431-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
3Y1-2175R-00-00
Hook, Bank
|
3Y1-2175R-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
977-01405-08-00 Screw, Tapping (97702-40508) |
977-01405-08-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
90460-54085-00 Hose Clamp Assy |
90460-54085-00 |
from US $4.39 |
||
| replacement | |||||
|
21
|
21
90450-54008-00 Hose Clamp Assy |
90450-54008-00 |
from US $4.39 |
||
|
22
|
22
90480-16265-00
Grommet
|
90480-16265-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
97301-06015-00 Bolt |
97301-06015-00 |
US $1.28 |
||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
24
|
24
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
25
|
25
90202-06013-00 Washer, Plate |
90202-06013-00 |
US $2.29 |
||
|
26
|
26
97301-06015-00 Bolt |
97301-06015-00 |
US $1.28 |
||
| replacements | |||||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
27
|
27
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
