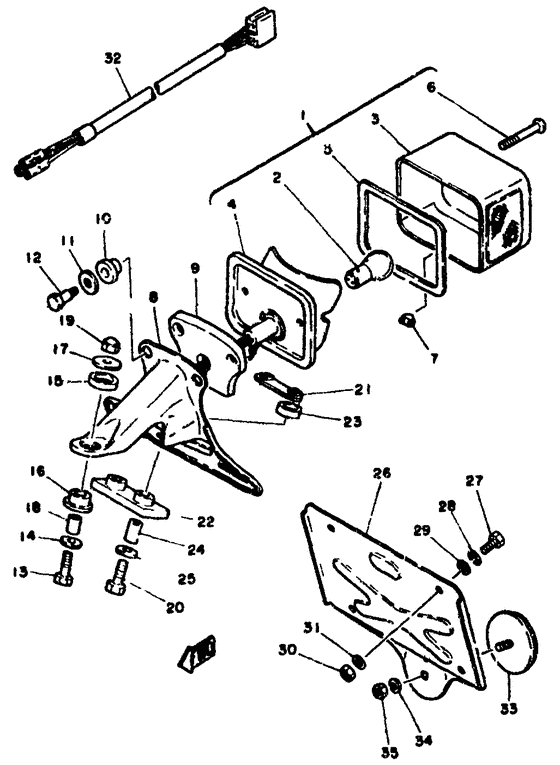

Taillight Diagram Yamaha XT250 XT250
- Year
- 1981
- Model code
- 5G4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y3-84510-40-00
Tail Light Unit Assy
|
3Y3-84510-40-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1M8-84514-40-00
Bulb
|
1M8-84514-40-00 |
— | ||
| replacement | |||||
|
2
|
2
1M8-84514-41-00
Bulb
|
1M8-84514-41-00 |
— | ||
|
3
|
3
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
| replacement | |||||
|
3
|
3
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
4
|
4
3Y3-84511-40-00
Base, Taillight
|
3Y3-84511-40-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
5
|
5
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
6
|
6
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
6
|
6
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
6
|
6
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
7
|
7
1A2-84718-40-00
Grommet
|
1A2-84718-40-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
4Y0-84551-E0-00
Bracket, Licence
|
4Y0-84551-E0-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1M1-84512-60-00 Seat, Base |
1M1-84512-60-00 |
from US $10.71 |
||
|
10
|
10
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
11
|
11
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
12
|
12
1M1-84526-60-00 Bolt |
1M1-84526-60-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
13
|
13
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
1M1-84553-10-00
Damper
|
1M1-84553-10-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
1M1-84553-20-00
Damper
|
1M1-84553-20-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
18
|
18
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
19
|
19
95301-06800-00 Nut |
95301-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
19
|
19
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
20
|
20
97301-06030-00 Bolt |
97301-06030-00 |
from US $1.07 |
||
| replacements | |||||
|
20
|
20
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
20
|
20
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
21
|
21
3Y3-84748-00-00
Nut, Special
|
3Y3-84748-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
3Y3-84553-00-00
Damper
|
3Y3-84553-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
1M1-84553-10-00
Damper
|
1M1-84553-10-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90387-06554-00 Collar, Lever 1 |
90387-06554-00 |
from US $6.09 |
||
| replacement | |||||
|
24
|
24
36Y-83913-01-00 Collar, Lever 1 |
36Y-83913-01-00 |
from US $6.09 |
||
|
25
|
25
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
26
|
26
4Y0-85132-00-00
Bracket, Reflector 1
|
4Y0-85132-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
28
|
28
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
30
|
30
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
31
|
31
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
31
|
31
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
32
|
32
3Y1-84517-00-00 Cord, Taillight |
3Y1-84517-00-00 |
US $16.56 |
||
| replacement | |||||
|
32
|
32
3Y3-84517-00-00 Cord, Taillight |
3Y3-84517-00-00 |
US $16.20 |
||
|
33
|
33
449-85131-01-00 Reflector, Rear 1 |
449-85131-01-00 |
from US $22.21 |
||
| replacement | |||||
|
33
|
33
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
34
|
34
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
35
|
35
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
35
|
35
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
