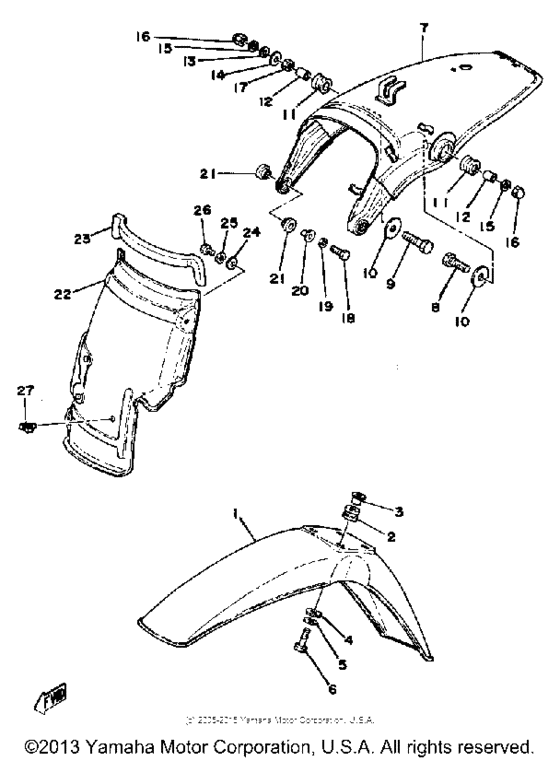

Fender Diagram Yamaha XT500
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H0-21511-00-20
Fender, Front
|
2H0-21511-00-20 |
— | ||
|
2
|
2
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.39 |
||
|
3
|
3
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
4
|
4
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
6
|
6
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
6
|
6
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
7
|
7
1E6-21610-01-20
Fender, Rear
|
1E6-21610-01-20 |
— | ||
|
8
|
8
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
8
|
8
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
9
|
9
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
9
|
9
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
10
|
10
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
10
|
10
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
11
|
11
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $9.49 |
||
|
12
|
12
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
13
|
13
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
14
|
14
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
14
|
14
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
18
|
18
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
21
|
21
322-21541-00-00 Damper 1 |
322-21541-00-00 |
from US $4.96 |
||
|
22
|
22
1T1-21620-00-00 Guard, Mud |
1T1-21620-00-00 |
from US $84.01 |
||
|
23
|
23
583-21746-00-00
Damper
|
583-21746-00-00 |
— | ||
|
24
|
24
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
26
|
26
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
27
|
27
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
