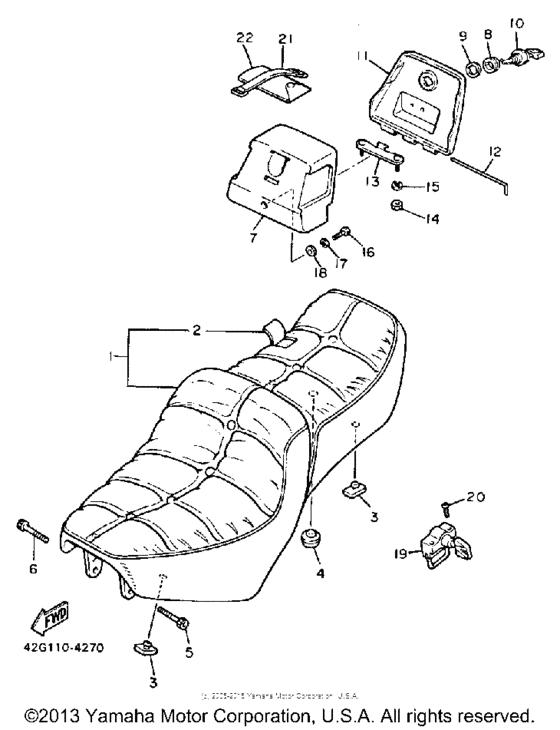

Seat Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3CF-24730-10-00
Double Seat Assembly
|
3CF-24730-10-00 |
— | ||
|
2
|
2
42H-24731-01-00
Cover, Seat (42H-24731-00)
42H-24731-00 |
42H-24731-01-00 |
— | ||
|
3
|
3
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.68 |
||
|
4
|
4
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
5
|
5
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
5
|
5
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
6
|
6
90110-06077-00 Bolt |
90110-06077-00 |
from US $1.52 |
||
| replacement | |||||
|
6
|
6
91317-06055-00 Bolt |
91317-06055-00 |
from US $1.52 |
||
|
7
|
7
42X-2473R-00-00
Box 1
|
42X-2473R-00-00 |
— | ||
|
8
|
8
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
9
|
9
90201-225A4-00 Washer, Plate (T=1.0) |
90201-225A4-00 |
from US $1.39 |
||
|
10
|
10
5A8-21708-00-00 Lock Assembly 2 |
5A8-21708-00-00 |
from US $51.08 |
||
|
11
|
11
42X-2473T-00-00 Lid 1 |
42X-2473T-00-00 |
US $91.37 |
||
|
12
|
12
42X-2177K-00-00 Pin, Hinge |
42X-2177K-00-00 |
US $2.52 |
||
|
13
|
13
42X-21631-00-00
Bolt 1
|
42X-21631-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
19
|
19
42X-21308-00-00
Helmet Hanger Assembly
|
42X-21308-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
98701-05020-00 Screw, Flat Head |
98701-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
20
|
20
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
21
|
21
5H9-21376-00-00 Band, Tool |
5H9-21376-00-00 |
from US $4.57 |
||
|
22
|
22
5A8-W2810-00-00 Tool Kit |
5A8-W2810-00-00 |
from US $103.21 |
||
