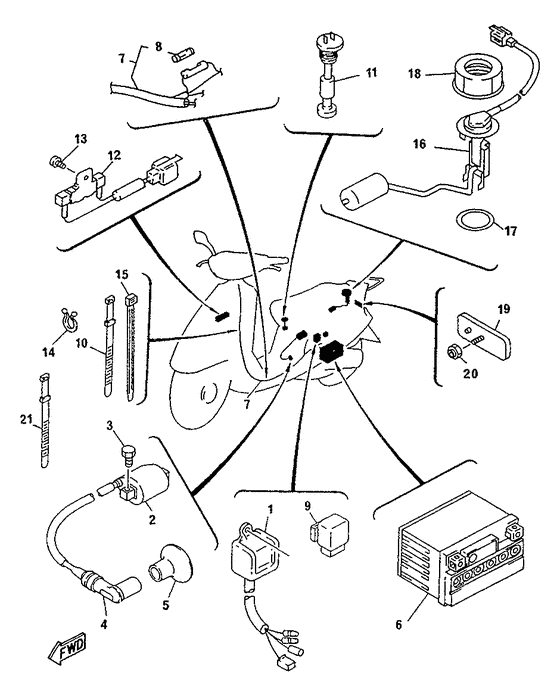

Grupo electrico 2 Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Sweet Heart Red (SHR; 000M)
- Model code
- 4MJ9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3SL-85540-10-00
C.d.i. Unit Assy
|
3SL-85540-10-00 |
— | ||
|
02
|
02
3KJ-82310-01-00 Ignition Coil Assy |
3KJ-82310-01-00 |
from US $59.27 |
||
| replacements | |||||
|
02
|
02
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
02
|
02
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
02
|
02
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
03
|
03
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
03
|
03
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
03
|
03
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
04
|
04
3WG-H2370-10-00 Plug Cap Assy |
3WG-H2370-10-00 |
from US $29.04 |
||
| replacement | |||||
|
04
|
04
SPC-LB05F-00-00 Spark Plugcap - Ngk Lb05F |
SPC-LB05F-00-00 |
US $24.28 |
||
|
05
|
05
3WG-H2372-00-00 Seal, Plug Cap |
3WG-H2372-00-00 |
from US $4.53 |
||
|
06
|
06
3UC-82100-00-00
Battery Assy
|
3UC-82100-00-00 |
— | ||
| replacements | |||||
|
06
|
06
GTX-4LBS0-00-00
CB12B-B2 GS BATTERY
|
GTX-4LBS0-00-00 |
— | ||
|
06
|
06
907-9R242-79-00
Battery (Yt4L-Bs)
|
907-9R242-79-00 |
— | ||
|
07
|
07
4MJ-H2590-20-00
Wire Harness Assy
|
4MJ-H2590-20-00 |
— | ||
|
08
|
08
3WG-H2151-00-00
Fuse
|
3WG-H2151-00-00 |
— | ||
|
09
|
09
27V-81940-02-00
Starter Relay Assy
|
27V-81940-02-00 |
— | ||
| replacement | |||||
|
09
|
09
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $34.06 |
||
|
10
|
10
5T8-H3936-10-00
Band, Switch Cord
|
5T8-H3936-10-00 |
— | ||
|
11
|
11
3VL-H5720-10-00
Oil Level Gauge Assy
|
3VL-H5720-10-00 |
— | ||
| replacement | |||||
|
11
|
11
53L-85720-10-00 Oil Level Gauge Assy |
53L-85720-10-00 |
from US $32.16 |
||
|
12
|
12
3WG-H5370-10-00
Resistor Assy
|
3WG-H5370-10-00 |
— | ||
|
13
|
13
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
14
|
14
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
15
|
15
90464-13804-00
Clamp
|
90464-13804-00 |
— | ||
|
16
|
16
4MJ-H5752-10-00
Sender Unit Assy, Fuel Meter
|
4MJ-H5752-10-00 |
— | ||
|
17
|
17
4MJ-H5753-00-00
Gasket, Sender Unit
|
4MJ-H5753-00-00 |
— | ||
| replacement | |||||
|
17
|
17
5C2-H5753-00-00
Gasket, Sender Unit
|
5C2-H5753-00-00 |
— | ||
|
18
|
18
4MJ-F4261-00-00
Housing, Fuel Meter
|
4MJ-F4261-00-00 |
— | ||
|
19
|
19
4BA-H5130-00-00
Rear Reflector Assy
|
4BA-H5130-00-00 |
— | ||
|
20
|
20
95706-05500-00 Nut, With Washer |
95706-05500-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
21
|
21
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
