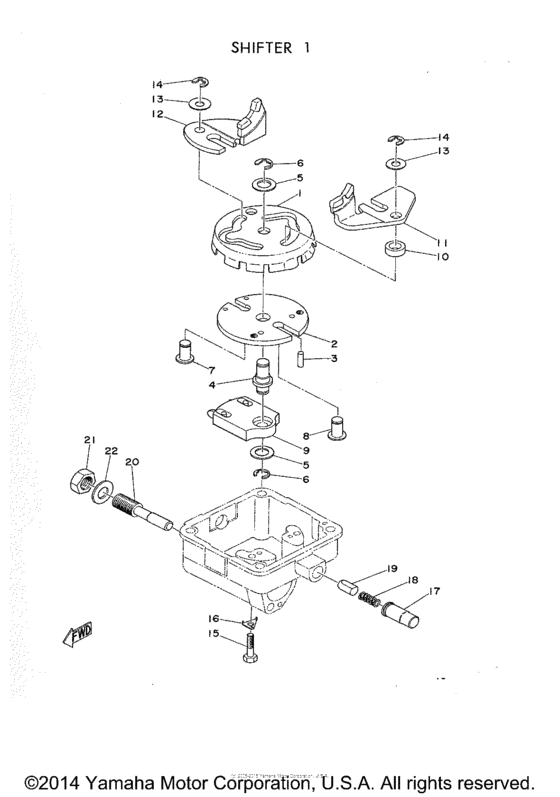

Shift shaft (1) Diagram Yamaha YD
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YD3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
148-18331-00-00
Plate, Shift Cam
|
148-18331-00-00 |
— | ||
|
2
|
2
146-18381-00-00
Bracket, Shifter
|
146-18381-00-00 |
— | ||
|
3
|
3
936-04120-13-00
Pin, Dowel
|
936-04120-13-00 |
— | ||
|
4
|
4
146-18318-00-00
Shaft, Shifter
|
146-18318-00-00 |
— | ||
|
5
|
5
148-18338-00-00
Washer, Plain
10.2-18-0.7,0.6~1.45 |
148-18338-00-00 |
— | ||
| replacement | |||||
|
5
|
5
148-18338-00-10
WASHER,PLATE
10.2-18-0.7,0.6~1.45 |
148-18338-00-10 |
— | ||
|
6
|
6
93430-08006-00 Circlip |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
7
|
7
146-18316-00-00
Rotor 1
|
146-18316-00-00 |
— | ||
|
8
|
8
146-18329-00-00
Rotor 2
|
146-18329-00-00 |
— | ||
|
9
|
9
148-18180-00-00
Pawl Holder Assembly
|
148-18180-00-00 |
— | ||
|
10
|
10
148-18342-00-00
Shim, Shifter
|
148-18342-00-00 |
— | ||
|
11
|
11
148-18311-00-00
Fork, Shift 1
|
148-18311-00-00 |
— | ||
|
12
|
12
148-18312-00-00
Fork, Shift 2
|
148-18312-00-00 |
— | ||
|
13
|
13
148-18334-00-00
Shim, Rotor
8.2-16-0.5 |
148-18334-00-00 |
— | ||
|
14
|
14
934-30060-04-00 Circlip |
934-30060-04-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
15
|
15
148-18361-00-00
Bolt, Shifter Bracket
|
148-18361-00-00 |
— | ||
|
16
|
16
146-18362-00-00
Washer, Lock
|
146-18362-00-00 |
— | ||
|
17
|
17
148-18587-00-00
Bush, Stopper
|
148-18587-00-00 |
— | ||
|
18
|
18
148-18557-00-00
Spring, Cam Stopper
|
148-18557-00-00 |
— | ||
|
19
|
19
148-18547-00-00
Stopper, Cam
|
148-18547-00-00 |
— | ||
|
20
|
20
146-18133-00-00
Screw, Adjusting
|
146-18133-00-00 |
— | ||
|
21
|
21
146-18134-00-00
Nut, Screw
12-7 |
146-18134-00-00 |
— | ||
|
22
|
22
137-18567-00-00 Gasket |
137-18567-00-00 |
US $2.13 |
||
| replacement | |||||
|
22
|
22
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
