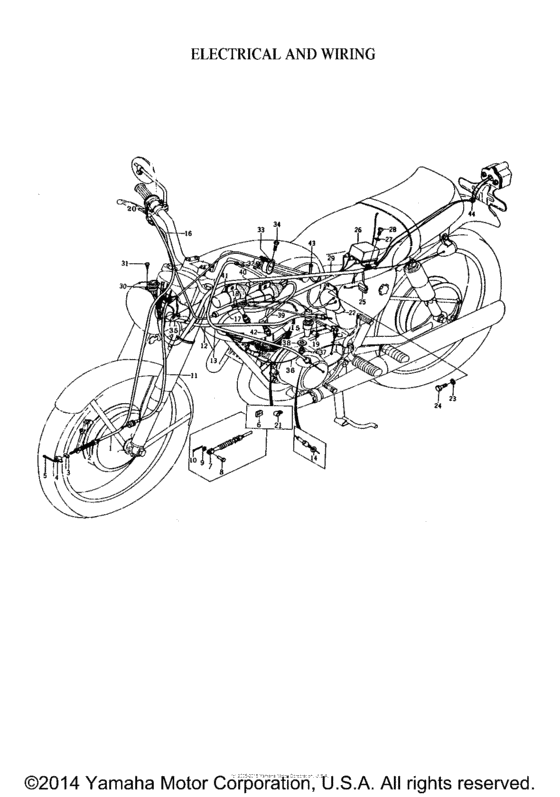

Electrical and cables Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1965
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YM1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-26341-01-00
Wire, Brake
|
156-26341-01-00 |
— | ||
| replacement | |||||
|
1
|
1
174-26341-10-00
Cable, Brake
|
174-26341-10-00 |
— | ||
|
6
|
6
136-82545-00-00
Grommet
|
136-82545-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90480-01148-00
Grommet 136825450000
|
90480-01148-00 |
— | ||
|
7
|
7
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
8
|
8
156-27229-00-00 Pin, Clevis |
156-27229-00-00 |
US $1.84 |
||
| replacement | |||||
|
8
|
8
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.66 |
||
|
9
|
9
156-27226-00-00 Washer, Plate8.2-13-0.6 |
156-27226-00-00 |
US $1.70 |
||
| replacement | |||||
|
9
|
9
90201-08083-00 Washer, Plate8.2-13-0.6 |
90201-08083-00 |
from US $1.60 |
||
|
10
|
10
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
10
|
10
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
11
|
11
156-83550-00-00
Speedometer Cable
|
156-83550-00-00 |
— | ||
| replacement | |||||
|
11
|
11
156-83550-01-00
Speedometer Cable
|
156-83550-01-00 |
— | ||
|
12
|
12
156-83560-00-00
Tachometer Cable Assy
|
156-83560-00-00 |
— | ||
|
13
|
13
156-26335-00-00
Wire, Clutch
|
156-26335-00-00 |
— | ||
|
14
|
14
148-26336-00-00
Gasket, Clutch Wire
14-23.5-15 |
148-26336-00-00 |
— | ||
|
15
|
15
156-82530-00-00
Stop Switch Assy
|
156-82530-00-00 |
— | ||
|
16
|
16
156-26311-03-00
Wire, Throttle 1
|
156-26311-03-00 |
— | ||
|
17
|
17
156-26261-01-00
Cylinder, Wire
|
156-26261-01-00 |
— | ||
|
18
|
18
156-26312-01-00
Wire, Throttle 2
LEFT HAND |
156-26312-01-00 |
— | ||
|
18
|
18
156-26313-00-00
Wire, Throttle 3
RIGHT HAND |
156-26313-00-00 |
— | ||
|
19
|
19
156-26321-00-00
Wire, Oil Pump
|
156-26321-00-00 |
— | ||
|
20
|
20
156-26251-00-00 Nut, Hexagon |
156-26251-00-00 |
US $6.02 |
||
| replacement | |||||
|
20
|
20
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
21
|
21
156-82544-00-00
Clamp
|
156-82544-00-00 |
— | ||
| replacement | |||||
|
21
|
21
904-62060-14-00
Clamp
|
904-62060-14-00 |
— | ||
|
22
|
22
156-83371-10-00
Horn
|
156-83371-10-00 |
— | ||
| replacement | |||||
|
22
|
22
156-83371-09-00
GROMMET
|
156-83371-09-00 |
— | ||
|
23
|
23
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
24
|
24
912-01080-18-00 Bolt, Hex |
912-01080-18-00 |
US $7.37 |
||
| replacement | |||||
|
24
|
24
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
25
|
25
148-82150-00-00 Fuse Holder Assy |
148-82150-00-00 |
US $11.76 |
||
| replacement | |||||
|
25
|
25
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
26
|
26
156-81910-20-00
Regulator Assy
|
156-81910-20-00 |
— | ||
|
27
|
27
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
92501-06015-00 Screw |
92501-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
29
|
29
156-82590-10-00
Wire Harness Assembly
|
156-82590-10-00 |
— | ||
|
30
|
30
152-82510-10-00
Main Switch Asy
|
152-82510-10-00 |
— | ||
| replacement | |||||
|
30
|
30
152-82508-10-00
FRT FLSHR LITE ASY
|
152-82508-10-00 |
— | ||
|
31
|
31
926-03040-08-00 Screw, Flat Head |
926-03040-08-00 |
US $1.70 |
||
| replacement | |||||
|
31
|
31
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
32
|
32
146-83974-00-00
Holder, Handle Swch
|
146-83974-00-00 |
— | ||
| replacements | |||||
|
32
|
32
214-83974-00-00
Holder, Handle Swch
|
214-83974-00-00 |
— | ||
|
32
|
32
150-83974-00-00
New Genuine Part
|
150-83974-00-00 |
— | ||
|
33
|
33
156-82773-00-00
Handle Switch Asy
|
156-82773-00-00 |
— | ||
| replacement | |||||
|
33
|
33
156-82773-10-00
LEVER HOLDER ASY 1
|
156-82773-10-00 |
— | ||
|
34
|
34
92503-05015-00 Screw, Pan Head |
92503-05015-00 |
US $1.17 |
||
| replacements | |||||
|
34
|
34
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
34
|
34
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
35
|
35
152-83350-10-00
Flasher Relay Assy
|
152-83350-10-00 |
— | ||
|
36
|
36
156-82541-00-00
Wire, Switch Neutral
|
156-82541-00-00 |
— | ||
|
37
|
37
156-82540-00-00
Neutral Switch Assy
|
156-82540-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
156-82543-00-00
Gasket
|
156-82543-00-00 |
— | ||
| replacement | |||||
|
38
|
38
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
39
|
39
156-82341-10-00
Cord,high Tens 1
|
156-82341-10-00 |
— | ||
| replacement | |||||
|
39
|
39
156-82341-19-00
element
|
156-82341-19-00 |
— | ||
|
40
|
40
156-82342-10-00
Cord, High Tension (Rh)
|
156-82342-10-00 |
— | ||
|
41
|
41
152-82310-20-00
Ignition Coil Assy
|
152-82310-20-00 |
— | ||
|
42
|
42
947-00000-04-00
Plug, Spark B7Hz
B7HZ HOT |
947-00000-04-00 |
— | ||
| replacements | |||||
|
42
|
42
94701-00110-00 Plug, Spark (Br7Hs)B7HZ HOT |
94701-00110-00 |
US $6.62 |
||
|
42
|
42
947-00000-40-00
Plug, spark (b7hs)
B7HZ HOT |
947-00000-40-00 |
— | ||
|
42
|
42
94701-00040-00 Plug, SparkB7HZ HOT |
94701-00040-00 |
US $3.02 |
||
|
42
|
42
947-00000-06-00
Plug, Spark B8Hc
B8HC STD. |
947-00000-06-00 |
— | ||
| replacements | |||||
|
42
|
42
B8H-S0000-00-00 elementB8HC STD. |
B8H-S0000-00-00 |
US $4.99 |
||
|
42
|
42
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)B8HC STD. |
BR8-HS000-00-00 |
US $26.36 |
||
|
43
|
43
150-82591-00-00
Band, Wire Harness
|
150-82591-00-00 |
— | ||
|
44
|
44
152-84518-00-00 Grommet |
152-84518-00-00 |
US $1.84 |
||
| replacement | |||||
|
44
|
44
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
