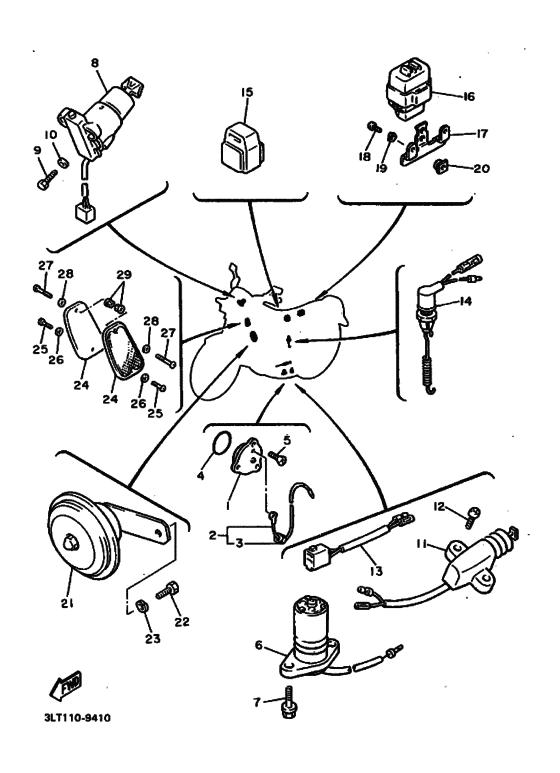

Electrical 2 Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $14.82 |
||
|
2
|
2
3KM-82541-00-00
Wire, Lead
|
3KM-82541-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90480-01148-00
Grommet 136825450000
|
90480-01148-00 |
— | ||
|
4
|
4
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.66 |
||
|
5
|
5
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
5
|
5
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
6
|
6
4U8-85720-00-00
Oil Level Gauge Assembly
|
4U8-85720-00-00 |
— | ||
|
7
|
7
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
7
|
7
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
8
|
8
3LT-82501-00-00
Main Switch Steering Lock
|
3LT-82501-00-00 |
— | ||
|
9
|
9
97021-06016-00 Bolt(1Kh) |
97021-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
9
|
9
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
4U8-82566-00-00
Switch, Side Stand
|
4U8-82566-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4DH-82566-00-00 Switch, Side Stand |
4DH-82566-00-00 |
from US $92.01 |
||
|
12
|
12
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
13
|
13
49A-82541-00-00
Wire, Lead
|
49A-82541-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
2F1-82530-01-00 Stop Switch Assy |
2F1-82530-01-00 |
from US $22.18 |
||
| replacements | |||||
|
14
|
14
2F1-82530-02-00 Stop Switch Assembly (2F1-82530 |
2F1-82530-02-00 |
from US $13.90 |
||
|
14
|
14
2F1-82530-03-00 Stop Switch Assy |
2F1-82530-03-00 |
US $49.05 |
||
|
15
|
15
2UJ-81950-00-00 Relay Assy (2Uj-00) |
2UJ-81950-00-00 |
from US $73.64 |
||
| replacements | |||||
|
15
|
15
2UJ-81950-01-00 |
2UJ-81950-01-00 |
from US $73.64 |
||
|
15
|
15
2UJ-81950-02-00 Relay Assy |
2UJ-81950-02-00 |
US $73.04 |
||
|
16
|
16
2UJ-83350-00-00 Flasher Relay Assy |
2UJ-83350-00-00 |
from US $113.29 |
||
| replacement | |||||
|
16
|
16
2UJ-83350-01-00 Flasher Relay Assy |
2UJ-83350-01-00 |
from US $99.19 |
||
|
17
|
17
3LT-81953-00-00 Stay, Relay |
3LT-81953-00-00 |
US $20.34 |
||
|
18
|
18
98501-06012-00 Screw Pan Head |
98501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
4G0-21736-00-00
Nut,plate
|
4G0-21736-00-00 |
— | ||
|
21
|
21
25G-83371-00-00 Horn |
25G-83371-00-00 |
from US $58.17 |
||
|
22
|
22
970-26080-12-00
Bolt
|
970-26080-12-00 |
— | ||
| replacement | |||||
|
22
|
22
97027-08012-00 Bolt |
97027-08012-00 |
from US $2.41 |
||
|
23
|
23
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
24
|
24
3G1-85110-00-00
Front Reflector Assembly
|
3G1-85110-00-00 |
— | ||
|
25
|
25
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
25
|
25
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
26
|
26
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
27
|
27
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
27
|
27
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
27
|
27
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
28
|
28
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
28
|
28
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
29
|
29
957-01045-00-00
Nut, Flange
|
957-01045-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.39 |
||
