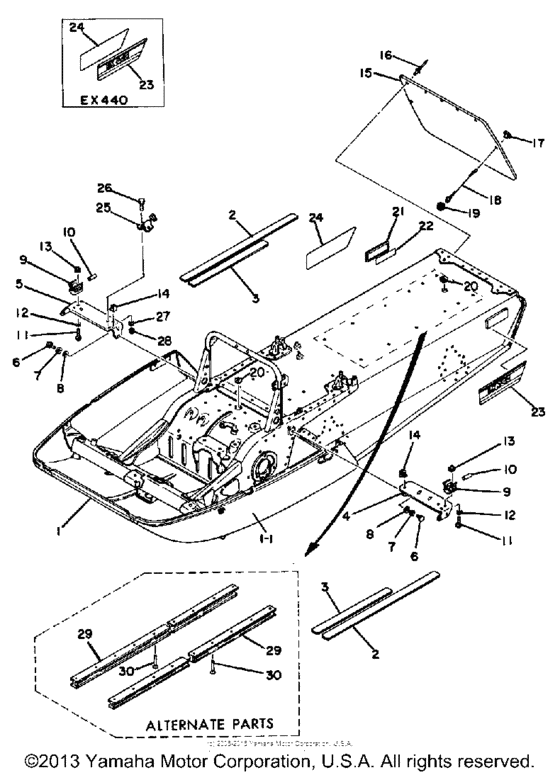

Frame Diagram Yamaha EX340 Exciter
- Model code
- EX340
- Engine Capacity
- 340
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8E7-21910-00-00
Frame
|
8E7-21910-00-00 |
— | ||
|
2
|
2
878-27413-00-00
Cover, Footrest
|
878-27413-00-00 |
— | ||
|
3
|
3
878-27423-00-00
Cover, Footrest
|
878-27423-00-00 |
— | ||
|
4
|
4
878-23883-00-00
Bracket 3
|
878-23883-00-00 |
— | ||
|
5
|
5
8A5-23884-00-00
Bracket 4
|
8A5-23884-00-00 |
— | ||
|
6
|
6
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
6
|
6
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
9
|
9
878-77137-01-00
Clamp 3
|
878-77137-01-00 |
— | ||
|
10
|
10
878-77188-00-00
Stopper
|
878-77188-00-00 |
— | ||
|
11
|
11
97001-06008-00 Bolt, Hex |
97001-06008-00 |
from US $2.09 |
||
| replacement | |||||
|
11
|
11
97017-06008-00 Bolt |
97017-06008-00 |
from US $2.83 |
||
|
12
|
12
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
13
|
13
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
14
|
14
904-64040-10-00
Clamp
|
904-64040-10-00 |
— | ||
|
15
|
15
8V8-77595-00-00
Flap
|
8V8-77595-00-00 |
— | ||
|
16
|
16
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.81 |
||
|
17
|
17
903-38100-24-00
Plug, Spec''l Shape
|
903-38100-24-00 |
— | ||
|
18
|
18
878-77596-00-00
Stopper, Flap
|
878-77596-00-00 |
— | ||
|
19
|
19
904-68160-59-00
Clip
|
904-68160-59-00 |
— | ||
|
20
|
20
810-77716-00-00
Ornament, Instrument Panel 2
|
810-77716-00-00 |
— | ||
|
21
|
21
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
|
22
|
22
878-85133-00-00
Tape, Reflector
|
878-85133-00-00 |
— | ||
|
23
|
23
8E7-77353-00-00
Emblem 3
|
8E7-77353-00-00 |
— | ||
|
23
|
23
8E8-77353-00-00
Emblem 3
|
8E8-77353-00-00 |
— | ||
|
24
|
24
8E7-77354-00-00
Emblem 4
|
8E7-77354-00-00 |
— | ||
|
24
|
24
8E8-77354-00-00 Emblem 4 |
8E8-77354-00-00 |
US $5.92 |
||
|
25
|
25
8A5-23874-00-00
Holder, Wire
|
8A5-23874-00-00 |
— | ||
|
26
|
26
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
26
|
26
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.52 |
||
|
29
|
29
888-21978-00-00
Protector, Frame
AP |
888-21978-00-00 |
— | ||
|
30
|
30
991-00401-14-00
Rivet, Flat Head
AP |
991-00401-14-00 |
— | ||
