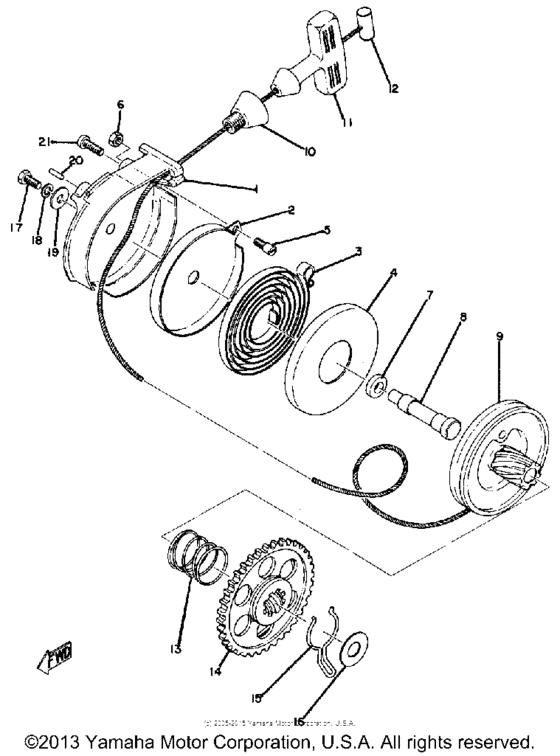

Starter Diagram Yamaha GP643
- Model code
- GP643
- Engine Capacity
- 643
- Year
- 1973
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
847-15710-00-00
Starter Assembly
|
847-15710-00-00 |
— | ||
|
1
|
1
847-15711-00-00
Case, Starter
|
847-15711-00-00 |
— | ||
|
2
|
2
834-15769-00-00
Case, Spring R
|
834-15769-00-00 |
— | ||
|
3
|
3
905-10080-03-00
Spring, Spiral
|
905-10080-03-00 |
— | ||
|
4
|
4
834-15766-00-00
Case, Spring L
|
834-15766-00-00 |
— | ||
|
5
|
5
902-49060-43-00
Pin, Spec''l Shape (834-15727
834-15727 |
902-49060-43-00 |
— | ||
|
6
|
6
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
7
|
7
902-01101-34-00
Washer, Plate (847-15719-00)
847-15719-00 |
902-01101-34-00 |
— | ||
|
8
|
8
847-15717-00-00
Shaft, Starter
|
847-15717-00-00 |
— | ||
|
9
|
9
847-15750-00-00
Str Handle Cmplt
|
847-15750-00-00 |
— | ||
|
10
|
10
834-15758-00-00
Guide, Rope
|
834-15758-00-00 |
— | ||
|
11
|
11
847-15755-00-00
Handle, Starter
|
847-15755-00-00 |
— | ||
|
12
|
12
834-15756-00-00
Connector 1
|
834-15756-00-00 |
— | ||
|
13
|
13
905-01161-08-00
Spring, Compression (847-1573
847-1573 |
905-01161-08-00 |
— | ||
|
14
|
14
847-15786-00-00
Gear, Starter
|
847-15786-00-00 |
— | ||
|
15
|
15
904-68350-40-00
Clip (847-15799-00)
847-15799-00 |
904-68350-40-00 |
— | ||
|
16
|
16
902-01142-24-00
Washer, Plate (847-15739-00)
847-15739-00 |
902-01142-24-00 |
— | ||
|
17
|
17
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
20
|
20
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
21
|
21
98516-06020-00 Screw Pan Head |
98516-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
21
|
21
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
