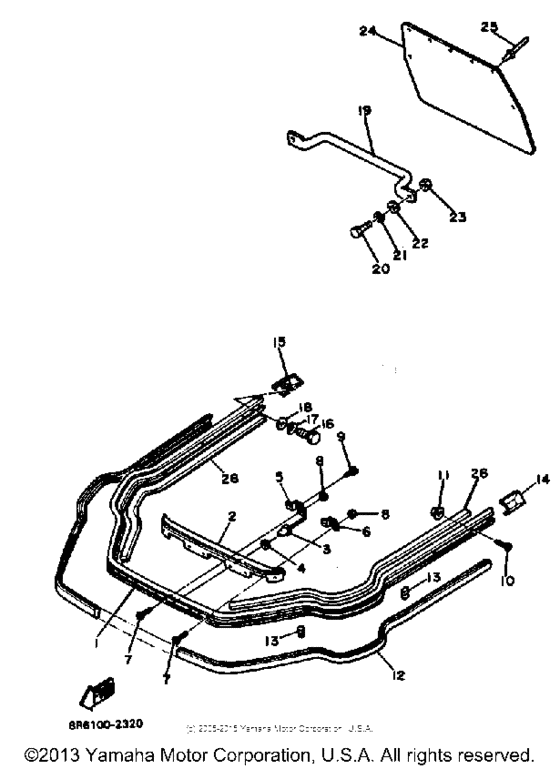

Bumper Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1982
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R6-77511-00-00 Bumper, Front 1 |
8R6-77511-00-00 |
US $314.53 |
||
|
2
|
2
8R6-77512-00-00
Bumper, Front 2
|
8R6-77512-00-00 |
— | ||
|
3
|
3
90267-48079-00 Rivet, Blind (4.8X16.1) |
90267-48079-00 |
from US $1.70 |
||
|
4
|
4
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
4
|
4
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
4
|
4
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
5
|
5
8N8-77531-00-00
Bracket, Front L (L.h)
|
8N8-77531-00-00 |
— | ||
|
6
|
6
8N8-77532-00-00
Bracket, Front R (R.h)
|
8N8-77532-00-00 |
— | ||
|
7
|
7
98701-06012-00 Screw Flat Head |
98701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
7
|
7
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
8
|
8
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
9
|
9
98903-06014-00 Screw, Bind |
98903-06014-00 |
from US $2.13 |
||
| replacement | |||||
|
9
|
9
98980-06014-00 Screw, Bind |
98980-06014-00 |
from US $2.13 |
||
|
10
|
10
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
10
|
10
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
10
|
10
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
11
|
11
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
12
|
12
8R6-77516-00-00
Bush, Rubber 2
|
8R6-77516-00-00 |
— | ||
|
13
|
13
8R6-77527-00-00
Plate, Back Up
UP |
8R6-77527-00-00 |
— | ||
|
14
|
14
8N8-77523-00-00
End, Bumper
|
8N8-77523-00-00 |
— | ||
|
15
|
15
8N8-77524-00-00 End, Bumper |
8N8-77524-00-00 |
US $48.71 |
||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
8L8-77541-00-00
Bumper, Rear 1
|
8L8-77541-00-00 |
— | ||
| replacement | |||||
|
19
|
19
8E7-77541-00-00
Bumper, Rear 1
|
8E7-77541-00-00 |
— | ||
|
20
|
20
97016-08020-00 Bolt |
97016-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
21
|
21
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
22
|
22
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
24
|
24
8V8-77595-00-00
Flap
|
8V8-77595-00-00 |
— | ||
|
25
|
25
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.84 |
||
|
26
|
26
8L0-77515-00-00
Bush, Rubber 1
|
8L0-77515-00-00 |
— | ||
