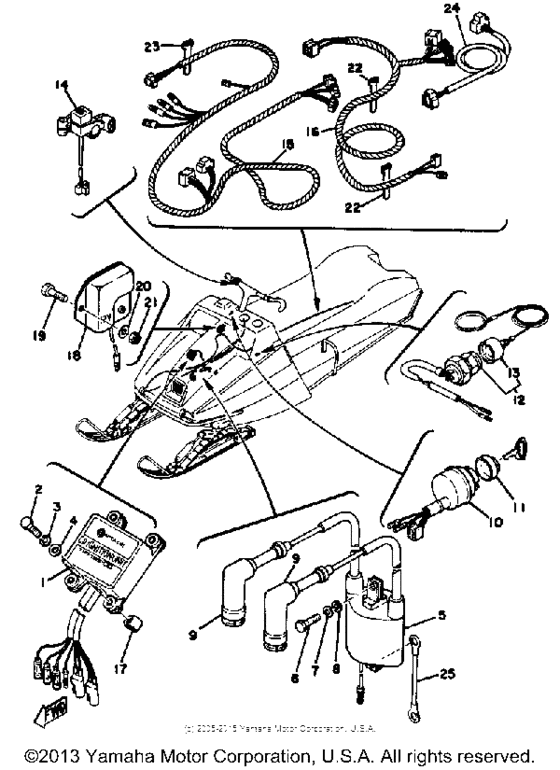

Electrical Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8F2-85540-10-00
Cdi Unit Assembly
|
8F2-85540-10-00 |
— | ||
|
2
|
2
97301-05025-00
Bolt, Hexagon (97201-05025)
97201-05025 |
97301-05025-00 |
— | ||
| replacement | |||||
|
2
|
2
97017-05025-00 Bolt97201-05025 |
97017-05025-00 |
US $1.49 |
||
|
3
|
3
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
4
|
4
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
4
|
4
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
4
|
4
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
5
|
5
8E7-82310-11-00
Ignition Coil Asy
|
8E7-82310-11-00 |
— | ||
| replacement | |||||
|
5
|
5
8E7-82310-09-00 Ignition Coil Assy |
8E7-82310-09-00 |
US $137.54 |
||
|
6
|
6
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
9
|
9
8E7-82370-11-00 Plug Cap AssemblyPlug cap assy with noise suppressor |
8E7-82370-11-00 |
from US $44.80 |
||
| replacement | |||||
|
9
|
9
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
10
|
10
898-82508-20-00
Main Switch Assembly
|
898-82508-20-00 |
— | ||
|
11
|
11
806-82516-00-00
Collar, Main Switch
|
806-82516-00-00 |
— | ||
|
12
|
12
8J7-82550-01-00
Stop Switch Assembly
|
8J7-82550-01-00 |
— | ||
|
13
|
13
8H8-82552-09-00 Cap, Switch |
8H8-82552-09-00 |
from US $42.28 |
||
|
14
|
14
8E7-83976-01-00
Switch, Handle 1 (8E7-83976-00)
8E7-83976-00 |
8E7-83976-01-00 |
— | ||
|
15
|
15
8F2-82590-20-00
Wire Harness Assembly
|
8F2-82590-20-00 |
— | ||
|
16
|
16
8F2-82580-20-00
Wire Harness Assembly 2
|
8F2-82580-20-00 |
— | ||
|
17
|
17
90465-06013-00 Clamp |
90465-06013-00 |
US $1.71 |
||
|
18
|
18
82F-81910-A0-00 Voltage Regulator Assy |
82F-81910-A0-00 |
from US $42.69 |
||
| replacement | |||||
|
18
|
18
7XE-81910-00-00 Voltage Regulator As |
7XE-81910-00-00 |
from US $42.69 |
||
|
19
|
19
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
20
|
20
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
21
|
21
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
22
|
22
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
23
|
23
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
23
|
23
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
23
|
23
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
24
|
24
8F2-84359-00-00
Cord, Headlight
|
8F2-84359-00-00 |
— | ||
|
25
|
25
5F7-82519-00-00
Wire, Earth Lead
|
5F7-82519-00-00 |
— | ||
