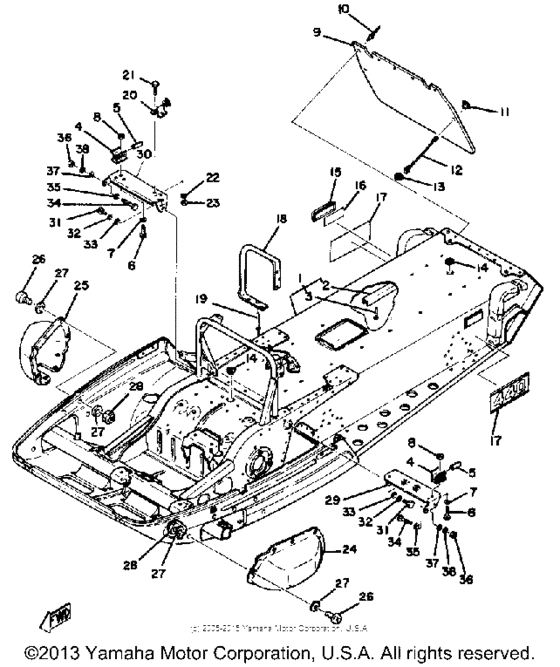

Frame Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8F2-21910-00-00 Frame |
8F2-21910-00-00 |
US $2,402.28 |
||
|
2
|
2
8A7-21978-00-00
Protector, Frame
|
8A7-21978-00-00 |
— | ||
|
3
|
3
902-63040-08-00
Rivet, Flat Head
|
902-63040-08-00 |
— | ||
|
4
|
4
878-77137-01-00
Clamp 3
|
878-77137-01-00 |
— | ||
|
5
|
5
878-77188-00-00
Stopper
|
878-77188-00-00 |
— | ||
|
6
|
6
97001-06008-00 Bolt, Hex |
97001-06008-00 |
from US $2.09 |
||
| replacement | |||||
|
6
|
6
97017-06008-00 Bolt |
97017-06008-00 |
from US $2.83 |
||
|
7
|
7
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
8
|
8
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
9
|
9
8F2-77595-00-00
Flap
|
8F2-77595-00-00 |
— | ||
|
10
|
10
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.84 |
||
|
11
|
11
903-38100-24-00
Plug, Spec''l Shape
|
903-38100-24-00 |
— | ||
|
12
|
12
878-77596-00-00
Stopper, Flap
|
878-77596-00-00 |
— | ||
|
13
|
13
904-68160-59-00
Clip
|
904-68160-59-00 |
— | ||
|
14
|
14
810-77716-00-00
Ornament, Instrument Panel 2
|
810-77716-00-00 |
— | ||
|
15
|
15
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
|
16
|
16
878-85133-00-00
Tape, Reflector
|
878-85133-00-00 |
— | ||
|
17
|
17
8F2-77353-01-00
Emblem 3
|
8F2-77353-01-00 |
— | ||
|
18
|
18
8A7-21926-00-00
Rnfcmnt, Ftrst 1
|
8A7-21926-00-00 |
— | ||
|
19
|
19
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
|
20
|
20
8A5-23874-00-00
Holder, Wire
|
8A5-23874-00-00 |
— | ||
|
21
|
21
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
24
|
24
8G9-21982-00-00
Hood 1
|
8G9-21982-00-00 |
— | ||
|
25
|
25
8G9-21983-00-00
Hood 2
|
8G9-21983-00-00 |
— | ||
|
26
|
26
98903-05012-00 Screw,binding |
98903-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
26
|
26
98904-05012-00 Screw, Bind |
98904-05012-00 |
from US $2.21 |
||
|
27
|
27
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
27
|
27
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
27
|
27
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
28
|
28
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
28
|
28
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
29
|
29
878-23883-00-00
Bracket 3
|
878-23883-00-00 |
— | ||
|
30
|
30
8A5-23884-00-00
Bracket 4
|
8A5-23884-00-00 |
— | ||
|
31
|
31
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
31
|
31
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
32
|
32
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
33
|
33
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
34
|
34
97313-05012-00 Bolt, Hexagon |
97313-05012-00 |
from US $1.53 |
||
| replacement | |||||
|
34
|
34
97013-05012-00 Bolt |
97013-05012-00 |
from US $1.57 |
||
|
35
|
35
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
35
|
35
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
35
|
35
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
36
|
36
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
36
|
36
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
37
|
37
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
37
|
37
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
37
|
37
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
38
|
38
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
