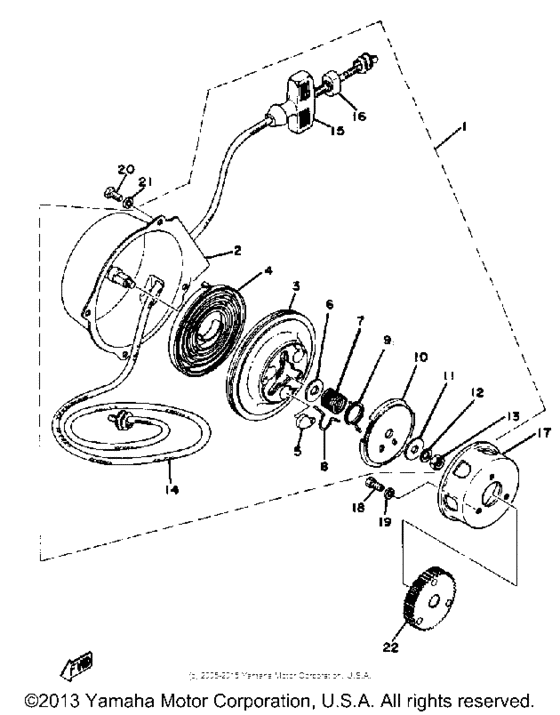

Starter Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-15710-01-00
Starter Assembly
|
8A7-15710-01-00 |
— | ||
|
2
|
2
8A7-15711-00-00
Case, Starter
|
8A7-15711-00-00 |
— | ||
|
3
|
3
857-15714-00-00 Drum, Sheave |
857-15714-00-00 |
US $69.48 |
||
|
4
|
4
8Y0-15713-00-00 Spring, Starter |
8Y0-15713-00-00 |
from US $26.64 |
||
| replacement | |||||
|
4
|
4
8F3-15713-01-00 Spring, Starter |
8F3-15713-01-00 |
from US $26.64 |
||
|
5
|
5
616-15741-01-00 Pawl, Drive |
616-15741-01-00 |
US $13.19 |
||
|
6
|
6
626-15719-00-00
Washer, Thrust (802-15719-00)
802-15719-00 |
626-15719-00-00 |
— | ||
|
7
|
7
626-15715-01-00 Spring, Drive Plate (807-1571807-1571 |
626-15715-01-00 |
from US $2.61 |
||
|
8
|
8
811-15784-00-00 Spring, Return |
811-15784-00-00 |
US $10.53 |
||
|
9
|
9
811-15734-00-00 Spring, Return |
811-15734-00-00 |
US $13.36 |
||
|
10
|
10
811-15716-00-00
Plate, Drive
|
811-15716-00-00 |
— | ||
|
11
|
11
807-15726-01-00 Washer, Flat |
807-15726-01-00 |
from US $3.40 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
14
|
14
856-15751-00-00
Rope, Starter
|
856-15751-00-00 |
— | ||
|
15
|
15
807-15755-00-00 Handle, Starter |
807-15755-00-00 |
US $12.24 |
||
|
16
|
16
619-15756-00-00
Connector 1
|
619-15756-00-00 |
— | ||
|
17
|
17
8A7-15723-00-00
Pulley, Starter
|
8A7-15723-00-00 |
— | ||
|
18
|
18
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
18
|
18
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
20
|
20
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
8F2-12441-00-00
Pulley 1
|
8F2-12441-00-00 |
— | ||
