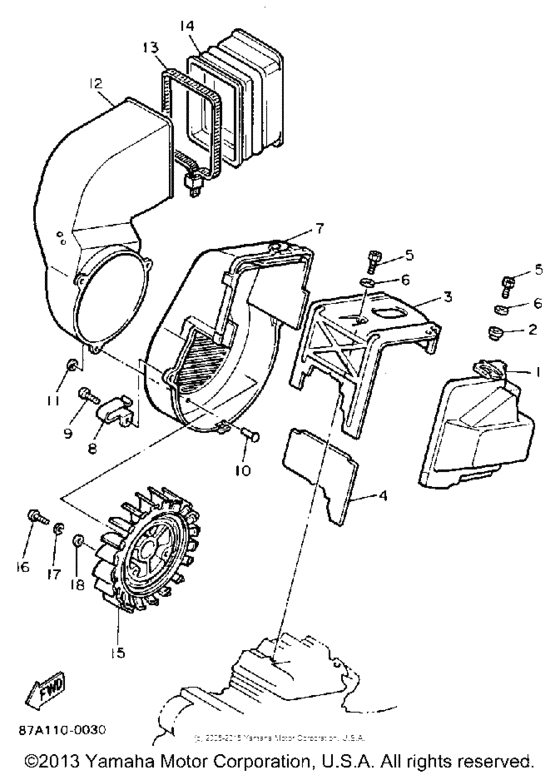

Air shroud & fan Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87A-12651-00-00 Air Shroud, Cylinder 1 |
87A-12651-00-00 |
US $38.30 |
||
|
2
|
2
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
3
|
3
50W-12652-00-00
Air Shroud, Cylinder 2
|
50W-12652-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
50W-11162-00-00
Absorber 2
|
50W-11162-00-00 |
— | ||
|
5
|
5
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
7
|
7
87A-12653-00-00
Air Shroud, Cylinder 3
|
87A-12653-00-00 |
— | ||
|
8
|
8
90465-10164-00 Clamp |
90465-10164-00 |
US $2.50 |
||
|
9
|
9
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
10
|
10
90267-48081-00 Rivet, Blind |
90267-48081-00 |
US $1.60 |
||
|
11
|
11
90201-057H5-00 Washer, Plate |
90201-057H5-00 |
from US $1.70 |
||
|
12
|
12
87A-12693-00-00 Duct 3 |
87A-12693-00-00 |
from US $52.20 |
||
|
13
|
13
90464-12123-00 Clamp |
90464-12123-00 |
from US $2.09 |
||
|
14
|
14
87A-12695-00-00
Joint 1
|
87A-12695-00-00 |
— | ||
|
15
|
15
50W-12611-00-00 Fan |
50W-12611-00-00 |
from US $59.38 |
||
|
16
|
16
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
16
|
16
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
