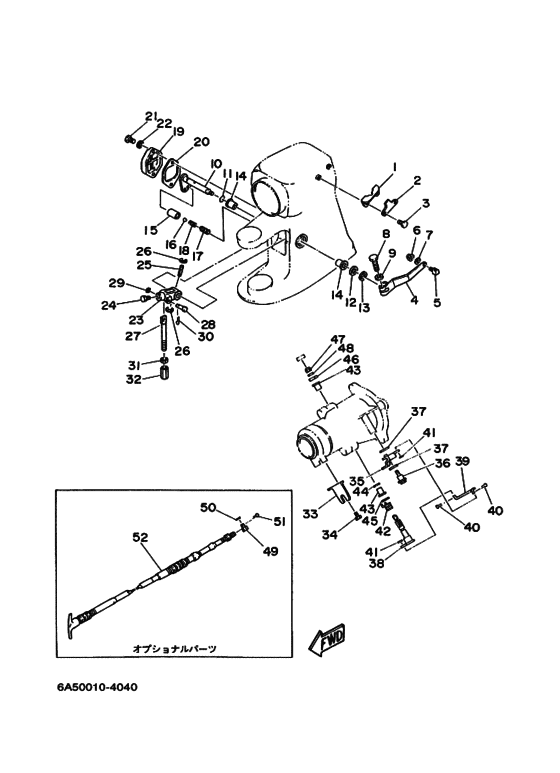

ｺﾝﾄﾛ-ﾙ Diagram Yamaha MU-1
- Model code
- 6A5
- Year
- 1993
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A5-48538-00-00 Clamp, Cable 1クランプ，ケ−ブル １; |
6A5-48538-00-00 |
US $63.69 |
||
|
2
|
2
6A5-48354-00-00 Set-Plate, Cableセツトプレ−ト，ケ−ブル; |
6A5-48354-00-00 |
US $32.02 |
||
|
3
|
3
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
3
|
3
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
3
|
3
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
4
|
4
6A5-44121-00-00 Lever, Shift Rodレバ−，シフトロツド; |
6A5-44121-00-00 |
US $219.67 |
||
|
5
|
5
6A5-48346-00-00 Cable End, Remote Controlケ−ブルエンド，リモ−トコントロ−ル; |
6A5-48346-00-00 |
US $26.21 |
||
|
6
|
6
95680-06100-00 Nut, Uナツト，Ｕ; |
95680-06100-00 |
from US $6.09 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
8
|
8
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
9
|
9
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.34 |
||
|
10
|
10
6A5-44119-00-00 Shaft, Change |
6A5-44119-00-00 |
US $158.88 |
||
|
11
|
11
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
12
|
12
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
13
|
13
93430-10M00-00 Circlip |
93430-10M00-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
99080-10600-00 Circlip |
99080-10600-00 |
from US $1.34 |
||
|
14
|
14
90386-12M43-00 Bush |
90386-12M43-00 |
US $38.96 |
||
|
15
|
15
6A5-44132-00-00 Bushing |
6A5-44132-00-00 |
US $23.38 |
||
|
16
|
16
93505-16024-00 Ball, Steel |
93505-16024-00 |
from US $2.45 |
||
|
17
|
17
90501-12274-00 1090 Spring, Compression |
90501-12274-00 |
from US $1.98 |
||
|
18
|
18
90501-09M19-00 Spring, Compression |
90501-09M19-00 |
US $9.35 |
||
|
19
|
19
6A5-45274-00-4D Cover, Shifter Casingカバ−，シフタケ−シング; |
6A5-45274-00-4D |
US $96.99 |
||
|
20
|
20
6A5-45273-00-00 Gasket, Shifter Casingガスケツト，シフタケ−シング; |
6A5-45273-00-00 |
US $4.96 |
||
|
21
|
21
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
6A5-44123-00-00 Arm, Shift Rodア−ム，シフトロツド; |
6A5-44123-00-00 |
US $192.04 |
||
|
24
|
24
6A5-43659-00-00 Shaft, Reverse Lockシヤフト，リバ−スロツク; |
6A5-43659-00-00 |
US $31.17 |
||
|
25
|
25
6A5-44137-00-00 Pin |
6A5-44137-00-00 |
US $26.21 |
||
|
26
|
26
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
27
|
27
6A5-44143-00-00 Rod, Shiftロツド，シフト; |
6A5-44143-00-00 |
US $21.11 |
||
|
28
|
28
90240-05M04-00 Pin, Clevis |
90240-05M04-00 |
from US $2.98 |
||
|
29
|
29
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
30
|
30
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
31
|
31
90170-07021-00 Nut |
90170-07021-00 |
from US $3.97 |
||
|
32
|
32
648-44146-00-00 Connector, Shift Rod 2コネクタ，シフトロツド; |
648-44146-00-00 |
from US $6.30 |
||
|
33
|
33
6A5-45821-00-00 Stay 1ステ− １; |
6A5-45821-00-00 |
US $51.53 |
||
|
34
|
34
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
34
|
34
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
35
|
35
6A5-45818-00-00 Lever 1 |
6A5-45818-00-00 |
US $81.24 |
||
|
36
|
36
90109-06260-00 Bolt |
90109-06260-00 |
from US $11.48 |
||
|
37
|
37
90202-10044-00 Washer, Plate |
90202-10044-00 |
from US $2.55 |
||
|
38
|
38
6A5-45819-00-00 Lever 2 |
6A5-45819-00-00 |
US $146.45 |
||
|
39
|
39
6A5-45822-00-00 Rod 1ロツド １; |
6A5-45822-00-00 |
US $24.79 |
||
|
40
|
40
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
41
|
41
92990-05600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
42
|
42
90508-13M08-00 Spring, Torsion |
90508-13M08-00 |
US $7.65 |
||
|
43
|
43
90386-10045-00 Bush |
90386-10045-00 |
from US $4.11 |
||
|
44
|
44
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
44
|
44
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
45
|
45
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.07 |
||
|
46
|
46
6A5-45817-00-00 Cam, Clutch |
6A5-45817-00-00 |
US $99.20 |
||
|
47
|
47
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
49
|
49
6A5-48344-00-00
Cable End, Remote Control
ケ−ブルエンド，リモ−トコントロ−ル; ＡＰ |
6A5-48344-00-00 |
— | ||
|
50
|
50
92990-06200-00 Washer, Plainワツシヤ，プレ−ン; ＡＰ |
92990-06200-00 |
from US $1.07 |
||
|
51
|
51
91490-20015-00 Pin. CotterＡＰ |
91490-20015-00 |
from US $1.13 |
||
|
52
|
52
6A5-48320-00-00 Cable, Remote Control L=6.5Fケ−ブル，リモ−トコントロ−ル ; Ｌ：６．５ＦＴ; ＡＰ |
6A5-48320-00-00 |
US $358.73 |
||
|
52
|
52
6A5-48320-10-00 Cable, Remote Control L=5Fケ−ブル，リモ−トコントロ−ル ; Ｌ：５ＦＴ; ＡＰ |
6A5-48320-10-00 |
US $375.10 |
||
|
52
|
52
6A5-48320-20-00 Cable, Remote Control L=8Fケ−ブル，リモ−トコントロ−ル ; Ｌ：８ＦＴ; ＡＰ |
6A5-48320-20-00 |
US $387.38 |
||
|
52
|
52
6A5-48320-30-00 Cable, Remote Control L=10Fケ−ブル，リモ−トコントロ−ル ; Ｌ：１０ＦＴ; ＡＰ |
6A5-48320-30-00 |
US $414.66 |
||
|
52
|
52
6A5-48320-40-00 Cable, Remote Control L=12Fケ−ブル，リモ−トコントロ−ル ; Ｌ：１２ＦＴ; ＡＰ |
6A5-48320-40-00 |
US $424.20 |
||
|
52
|
52
6A5-48320-50-00 Cable, Remote Control L=13Fケ−ブル，リモ−トコントロ−ル ; Ｌ：１３ＦＴ; ＡＰ |
6A5-48320-50-00 |
US $429.66 |
||
