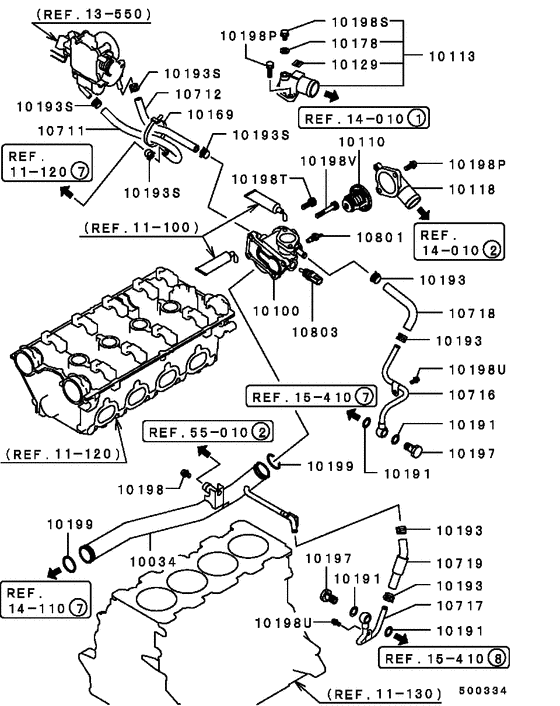

Water pipe & thermostat (ALL) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 GSR(98M)/EVO-6 GSR(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD342256
PIPE, WATER PUMP INLET
|
MD342256 |
— | ||
|
10034
|
10034
MD363252
PIPE, WATER PUMP INLET
|
MD363252 |
— | ||
|
10100
|
10100
MD334483 CASE, THERMOSTAT |
MD334483 |
US $155.95 |
||
|
10100
|
10100
MD363250 CASE, THERMOSTAT |
MD363250 |
from US $118.09 |
||
|
10110
|
10110
MD345617
THERMOSTAT KIT
|
MD345617 |
— | ||
|
10110
|
10110
MD363571 THERMOSTAT KIT |
MD363571 |
from US $44.99 |
||
|
10113
|
10113
MD334484
FITTING, COOLING WATER OUTLET HOSE
|
MD334484 |
— | ||
| replacement | |||||
|
10113
|
10113
1305A002 FITTING, COOLING WATER OUTLET HOSE |
1305A002 |
US $36.25 |
||
|
10113
|
10113
MD363251 FITTING, COOLING WATER OUTLET HOSE |
MD363251 |
from US $64.98 |
||
|
10118
|
10118
MD321261 FITTING, COOLING WATER INLET HOSE |
MD321261 |
US $69.08 |
||
|
10129
|
10129
MD183288
LABEL, THERMOSTAT CASE CAUTION
|
MD183288 |
— | ||
|
10169
|
10169
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
10178
|
10178
MD320544 WASHER, COOLING WATER LINESeal,8.1 |
MD320544 |
from US $1.77 |
||
|
10191
|
10191
MF660065 GASKET, CYLINDER BLOCKD=14 |
MF660065 |
from US $0.78 |
||
|
10193
|
10193
MS660242 CLIP, COOLING WATER LINE14.8 |
MS660242 |
from US $1.58 |
||
|
10193S
|
10193S
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10197
|
10197
MF650114 EYEBOLT, COOLING WATER LINE14x27 |
MF650114 |
from US $5.61 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
10198P
|
10198P
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
10198S
|
10198S
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198S
|
10198S
MF140239 BOLT, TIMING GEAR CASEFlange,8x70 |
MF140239 |
from US $1.99 |
||
|
10198T
|
10198T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198U
|
10198U
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
10198V
|
10198V
MF140235 BOLT, TIMING GEAR CASEFlange,8x50 |
MF140235 |
from US $1.40 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10711
|
10711
MD128002 HOSE, COOLING WATER LINE8x230 |
MD128002 |
from US $14.36 |
||
|
10711
|
10711
MD363255
HOSE, THROTTLE BODY WATER RETURN
|
MD363255 |
— | ||
|
10712
|
10712
MD160376 HOSE, THROTTLE BODY WATER RETURN8x185 |
MD160376 |
US $9.17 |
||
|
10712
|
10712
MD366384 HOSE, THROTTLE BODY WATER RETURN8x195 |
MD366384 |
from US $4.65 |
||
|
10716
|
10716
MD334486 PIPE, T/C WATER FEED |
MD334486 |
US $65.66 |
||
|
10716
|
10716
MD363253 PIPE, T/C WATER FEED |
MD363253 |
US $20.52 |
||
|
10717
|
10717
MD342255 PIPE, T/C WATER RETURN |
MD342255 |
US $57.46 |
||
|
10718
|
10718
MD338568 HOSE, T/C WATER FEED |
MD338568 |
US $7.93 |
||
|
10718
|
10718
MD363256 HOSE, T/C WATER FEED |
MD363256 |
from US $6.59 |
||
|
10719
|
10719
MD343647
HOSE, T/C WATER RETURN
|
MD343647 |
— | ||
|
10719
|
10719
MD366383 HOSE, T/C WATER RETURN9x200 |
MD366383 |
from US $21.76 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD182467
SENSOR UNIT, WATER TEMPERATURE
|
MD182467 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
