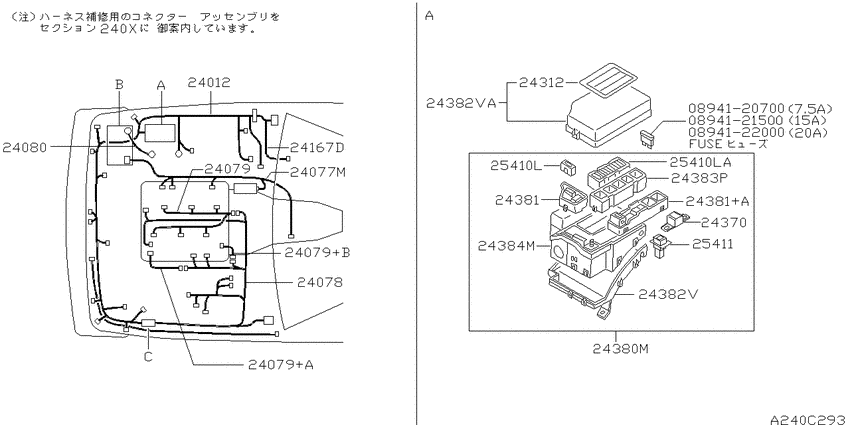

Wiring (1993-09-01 ~ 1996-06-01; エンジンルーム; S.VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0894120700
|
0894120700
0894120700 FUSE |
0894120700 |
US $0.86 |
||
|
0894121500
|
0894121500
0894121500 FUSE-15A |
0894121500 |
from US $0.59 |
||
|
0894122000
|
0894122000
0894122000 FUSE-20A |
0894122000 |
from US $0.59 |
||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
24012
|
24012
24012-1P680 Harness Assy-Engine Room9309--01 ~ 9505--01; S.TP/TS |
24012-1P680 |
US $1,442 |
||
|
24012
|
24012
24012-3P712 Harness Assy-Engine Room9606--01 ~ ; S |
24012-3P712 |
US $1,456 |
||
|
24012
|
24012
24012-3P713 Harness Assy-Engine Room9606--01 ~ ; *S; 3ﾃﾝ ｾﾂﾄ ｵﾌﾟｼﾖﾝ ｼﾖｳ |
24012-3P713 |
US $1,456 |
||
|
24012
|
24012
24012-3P723 Harness Assy-Engine Room9606--01 ~ ; *S; ｾﾚｸｼﾖﾝ S-4 |
24012-3P723 |
US $1,456 |
||
|
24012
|
24012
24012-3P800 Harness Assy-Engine Room9505--01 ~ 9606--01; S.TP/TS |
24012-3P800 |
US $1,456 |
||
|
24012
|
24012
0145600411 SCREW9309--01 ~ 9606--01; S.VG30DET |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01436-01041
Bolt
9309--01 ~ 9606--01; S.VG30DET |
01436-01041 |
— | ||
| replacement | |||||
|
24012
|
24012
081466162G Bolt-hexagon9309--01 ~ 9606--01; S.VG30DET |
081466162G |
from US $0.67 |
||
|
24012
|
24012
0143601141 SCREW9606--01 ~ ; S |
0143601141 |
US $2.36 |
||
|
24012
|
24012
0143601161
SCREW
9309--01 ~ 9606--01; S.VG30DET |
0143601161 |
— | ||
| replacement | |||||
|
24012
|
24012
08368-6125G ｽｸﾘﾕ-9309--01 ~ 9606--01; S.VG30DET |
08368-6125G |
US $2.21 |
||
|
24012
|
24012
0145600031 SCREW9309--01 ~ 9606--01; S.VG30DET |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
0143601141 SCREW9606--01 ~ ; S |
0143601141 |
US $2.36 |
||
|
24012
|
24012
01436-01191
SCREW
9606--01 ~ ; S |
01436-01191 |
— | ||
| replacement | |||||
|
24012
|
24012
083686165G SCRHEX HDPP W9606--01 ~ ; S |
083686165G |
from US $0.63 |
||
|
24012
|
24012
01281-00601
GROMMET-SCREW
9309--01 ~ 9606--01; S.VG30DET |
01281-00601 |
— | ||
| replacement | |||||
|
24012
|
24012
0128101231 GROMMET-SCREW9309--01 ~ 9606--01; S.VG30DET |
0128101231 |
US $4.16 |
||
|
24077M
|
24077M
24077-2P005 Harness Assy-Engine9309--01 ~ 9501--01; S.VG30DET |
24077-2P005 |
US $282.24 |
||
|
24077M
|
24077M
24077-3P810 Harness Assy-Engine9505--01 ~ 9606--01; S.VG30DET |
24077-3P810 |
US $470.11 |
||
|
24077M
|
24077M
24077-3P865 Harness Assy-Engine9606--01 ~ ; S |
24077-3P865 |
US $470.11 |
||
|
24077M
|
24077M
24077-9P005 Harness Assy-Engine9501--01 ~ 9505--01; S.VG30DET |
24077-9P005 |
US $516.84 |
||
|
24078
|
24078
24011-1P680 Harness Assy-Egi9309--01 ~ 9505--01; *S.VG30DET; ABS ｼﾖｳ |
24011-1P680 |
US $771.72 |
||
|
24078
|
24078
24011-1P681 Harness Assy-Egi9309--01 ~ 9505--01; S.VG30DET |
24011-1P681 |
US $771.72 |
||
|
24078
|
24078
24011-3P710 Harness Assy-Egi9606--01 ~ ; S |
24011-3P710 |
US $771.72 |
||
|
24078
|
24078
24011-3P711 Harness Assy-Egi9606--01 ~ ; *S; 3ﾃﾝ ｾﾂﾄ ｵﾌﾟｼﾖﾝ ｼﾖｳ |
24011-3P711 |
US $771.72 |
||
|
24078
|
24078
24011-3P800 Harness Assy-Egi9505--01 ~ 9606--01; *S.TP/TS; ABS ｼﾖｳ |
24011-3P800 |
US $771.72 |
||
|
24078
|
24078
24011-3P801 Harness Assy-Egi9505--01 ~ 9606--01; S.TP/TS |
24011-3P801 |
US $771.72 |
||
|
24079
|
24079
240790P000 Harness Assy-Egi Sub9309--01 ~ 9606--01; S.VG30DET |
240790P000 |
US $460.20 |
||
|
24079
|
24079
240790P015 Harness Assy-Egi Sub9309--01 ~ 9606--01; S.VG30DET |
240790P015 |
US $56.74 |
||
|
24079
|
24079
24079-2P000 Harness Assy-Egi Sub9309--01 ~ 9606--01; S.VG30DET |
24079-2P000 |
US $56.74 |
||
|
24079+A
|
24079+A
240790P015 Harness Assy-Egi Sub9309--01 ~ 9606--01; S.VG30DET |
240790P015 |
US $56.74 |
||
|
24079+B
|
24079+B
24079-2P000 Harness Assy-Egi Sub9309--01 ~ 9606--01; S.VG30DET |
24079-2P000 |
US $56.74 |
||
|
24080
|
24080
240801P000 Cable Assy-Battery Earth9309--01 ~ 9606--01; S.VG30DET |
240801P000 |
US $86.69 |
||
|
24080
|
24080
24080-1P100 Cable Assy-Battery Earth9606--01 ~ ; S |
24080-1P100 |
US $87.26 |
||
|
24080
|
24080
0122100381 NUT9309--01 ~ 9606--01; S.VG30DET |
0122100381 |
US $7.91 |
||
|
24167D
|
24167D
24031-2P000 Harness-Sub9606--01 ~ ; S |
24031-2P000 |
US $146.88 |
||
|
24312
|
24312
24323-1P106 Label-Fuse Block9309--01 ~ 9606--01; S.VG30DET |
24323-1P106 |
US $3.46 |
||
|
24312
|
24312
24323-1P405 Label-Fuse Block9606--01 ~ ; S |
24323-1P405 |
US $3.46 |
||
|
24312
|
24312
24313-1P105 Label-Fuse Block9309--01 ~ 9410--01; S.VG30DET |
24313-1P105 |
US $4.46 |
||
|
24312
|
24312
24313-3P800 Label-Fuse Block9410--01 ~ 9606--01; S.VG30DET |
24313-3P800 |
US $4.46 |
||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link9309--01 ~ 9606--01; S.VG30DET; 100A |
2437079910 |
US $13.10 |
||
|
24370
|
24370
24370-79965 Connector Assy-Fusible Link9309--01 ~ 9606--01; S.VG30DET; 120A |
24370-79965 |
US $24.48 |
||
|
24370
|
24370
24370-79970 Connector Assy-Fusible Link9309--01 ~ 9606--01; S.VG30DET; 140A |
24370-79970 |
US $18.43 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9309--01 ~ 9606--01; S.VG30DET; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9309--01 ~ 9606--01; S.VG30DET; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9309--01 ~ 9606--01; S.VG30DET; 45A |
24370-89960 |
US $12.20 |
||
|
24380M
|
24380M
24380-0P000 Box Assy-Relay9309--01 ~ 9606--01; S.VG30DET |
24380-0P000 |
US $208.80 |
||
|
24381
|
24381
24381-0P005 Housing-Fusible Link Holder9309--01 ~ 9606--01; S.VG30DET |
24381-0P005 |
US $37.87 |
||
|
24381
|
24381
24381-0P000 Housing-Fusible Link Holder9309--01 ~ 9606--01; S.VG30DET |
24381-0P000 |
US $13.39 |
||
|
24381+A
|
24381+A
24381-0P000 Housing-Fusible Link Holder9309--01 ~ 9606--01; S.VG30DET |
24381-0P000 |
US $13.39 |
||
|
24382V
|
24382V
24382-0P005 Cover-Relay Box9309--01 ~ 9606--01; S.VG30DET |
24382-0P005 |
US $23.04 |
||
|
24382V
|
24382V
24382-0P017 Cover-Relay Box9309--01 ~ 9606--01; S.VG30DET |
24382-0P017 |
US $26.06 |
||
|
24382V
|
24382V
24382-0P021 Cover-Relay Box9606--01 ~ ; S |
24382-0P021 |
US $26.06 |
||
|
24382VA
|
24382VA
24382-0P017 Cover-Relay Box9309--01 ~ 9606--01; S.VG30DET |
24382-0P017 |
US $26.06 |
||
|
24382VA
|
24382VA
24382-0P021 Cover-Relay Box9606--01 ~ ; S |
24382-0P021 |
US $26.06 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9309--01 ~ 9606--01; S.VG30DET |
2438351E00 |
from US $13.14 |
||
|
24384M
|
24384M
24384-0P000 Frame-Relay Box9309--01 ~ 9606--01; S.VG30DET |
24384-0P000 |
US $30.24 |
||
|
25410L
|
25410L
24321-0P000 Block Assy-Fuse9309--01 ~ 9606--01; S.VG30DET |
24321-0P000 |
US $4.46 |
||
|
25410L
|
25410L
24321-0P005 Block Assy-Fuse9606--01 ~ ; *S; ｾﾚｸｼﾖﾝ S-4 |
24321-0P005 |
US $27.07 |
||
|
25410L
|
25410L
24321-0P005 Block Assy-Fuse9309--01 ~ 9606--01; S.VG30DET |
24321-0P005 |
US $27.07 |
||
|
25410LA
|
25410LA
24321-0P005 Block Assy-Fuse9309--01 ~ 9606--01; S.VG30DET |
24321-0P005 |
US $27.07 |
||
|
25411
|
25411
24380-20V00 Holder-Fusible Link9309--01 ~ 9606--01; S.VG30DET |
24380-20V00 |
US $31.10 |
||
|
25411
|
25411
25411-0P020 Switch Assy-Power Window9309--01 ~ 9606--01; S; ｱｼｽﾄ,ﾘﾔ ﾖｳ |
25411-0P020 |
US $104.26 |
||
