Wiring (1993-09-01 ~ 1996-06-01; ボディ; S.VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0894120300
|
0894120300
0894120300 FUSE-3A |
0894120300 |
US $0.86 |
||
|
0894120700
|
0894120700
0894120700 FUSE |
0894120700 |
US $0.86 |
||
|
240
|

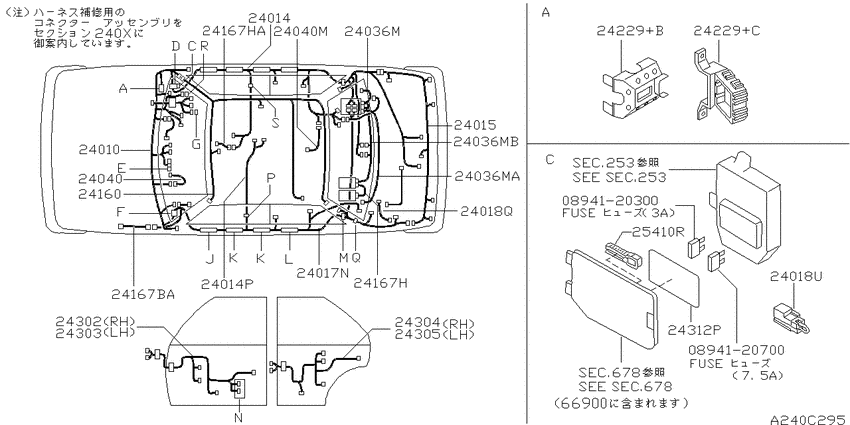

Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
24010
|
24010
24010-3P400 Harness Assy-Main9309--01 ~ 9410--01; S.VG30DET |
24010-3P400 |
US $2,926 |
||
|
24010
|
24010
24010-3P404 Harness Assy-Main9309--01 ~ 9410--01; *S.VG30DET; ﾃﾞﾕｱﾙ ｴｱｺﾝ ｼﾖｳ |
24010-3P404 |
US $2,926 |
||
|
24010
|
24010
24010-3P405 Harness Assy-Main9309--01 ~ 9410--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24010-3P405 |
US $2,926 |
||
|
24010
|
24010
24010-3P460 Harness Assy-Main9309--01 ~ 9410--01; *S.VG30DET; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
24010-3P460 |
US $2,926 |
||
|
24010
|
24010
24010-3P464 Harness Assy-Main9309--01 ~ 9410--01; *S.VG30DET; IT ｴｱｺﾝ + ｴｱﾊﾞﾂｸﾞ+ﾃﾞﾕｱﾙｴｱｺﾝ |
24010-3P464 |
US $2,926 |
||
|
24010
|
24010
24010-3P465 Harness Assy-Main9309--01 ~ 9410--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ + ｴｱﾊﾞﾂｸﾞ ｼﾖｳ |
24010-3P465 |
US $2,926 |
||
|
24010
|
24010
24010-3P775 Harness Assy-Main9606--01 ~ ; S |
24010-3P775 |
US $2,926 |
||
|
24010
|
24010
24010-3P776 Harness Assy-Main9606--01 ~ ; *S; AV ｼｽﾃﾑ ｼﾖｳ |
24010-3P776 |
US $2,926 |
||
|
24010
|
24010
24010-3P777 Harness Assy-Main9606--01 ~ ; *S; 3ﾃﾝ ｾﾂﾄ ｵﾌﾟｼﾖﾝ ｼﾖｳ |
24010-3P777 |
US $2,926 |
||
|
24010
|
24010
24010-3P778 Harness Assy-Main9606--01 ~ ; *S; 3ﾃﾝｾﾂﾄｵﾌﾟｼﾖﾝ+AVｼｽﾃﾑ |
24010-3P778 |
US $2,926 |
||
|
24010
|
24010
24010-3P779 Harness Assy-Main9606--01 ~ ; *S; 3ｳｴｲ ｴﾚｸﾄﾛﾆﾂｸ ﾒ-ﾀ- |
24010-3P779 |
US $2,926 |
||
|
24010
|
24010
24010-3P780 Harness Assy-Main9606--01 ~ ; *S; 3ｳｴｲ ｴﾚｸﾄﾛﾆﾂｸ ﾒ-ﾀ- + AV ｼｽﾃﾑ ｼﾖｳ |
24010-3P780 |
US $2,926 |
||
|
24010
|
24010
24010-3P781 Harness Assy-Main9606--01 ~ ; *S; '3ｳｴｲ ｴﾚｸﾄﾛﾆﾂｸ ﾒ-ﾀ- + 3ﾃﾝ ｾﾂﾄ ｵﾌﾟｼﾖﾝ ｼﾖｳ |
24010-3P781 |
US $2,926 |
||
|
24010
|
24010
24010-3P782 Harness Assy-Main9606--01 ~ ; *S; (3ｳｴｲｴﾚｸﾄﾛﾆﾂｸﾒ-ﾀ-+3ﾃﾝ ｾﾂﾄｵﾌﾟｼﾖﾝ+AVｼｽﾃﾑｼﾖｳ |
24010-3P782 |
US $2,926 |
||
|
24010
|
24010
24010-3P783 Harness Assy-Main9606--01 ~ ; *S; ｾﾚｸｼﾖﾝ S-4 |
24010-3P783 |
US $2,926 |
||
|
24010
|
24010
24010-3P784 Harness Assy-Main9606--01 ~ ; *S; ｾﾚｸｼﾖﾝ S-4+AVｼｽﾃﾑ |
24010-3P784 |
US $2,926 |
||
|
24010
|
24010
24010-3P811 Harness Assy-Main9410--01 ~ 9505--01; S.TP/TS |
24010-3P811 |
US $2,926 |
||
|
24010
|
24010
24010-3P814 Harness Assy-Main9410--01 ~ 9505--01; *S.VG30DET; ﾃﾞﾕｱﾙ ｴｱｺﾝ ｼﾖｳ |
24010-3P814 |
US $2,926 |
||
|
24010
|
24010
24010-3P815 Harness Assy-Main9410--01 ~ 9505--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24010-3P815 |
US $2,926 |
||
|
24010
|
24010
24010-3P860 Harness Assy-Main9505--01 ~ 9606--01; *S.VG30DET; ｼﾞﾖｼﾕｾｷ ｴｱ-ﾊﾞﾂｸｼﾖｳ |
24010-3P860 |
US $2,926 |
||
|
24010
|
24010
24010-3P862 Harness Assy-Main9505--01 ~ 9606--01; *S.VG30DET; 3ｳｴｲ ｴﾚｸﾄﾛﾆﾂｸ ﾒ-ﾀ- |
24010-3P862 |
US $2,926 |
||
|
24010
|
24010
24010-3P864 Harness Assy-Main9505--01 ~ 9606--01; *S.VG30DET; ﾃﾞﾕｱﾙ ｴｱｺﾝ ｼﾖｳ |
24010-3P864 |
US $2,926 |
||
|
24010
|
24010
24010-3P865 Harness Assy-Main9505--01 ~ 9606--01; *S.VG30DET; $ｼﾞﾖｼﾕｾｷ ｴｱ-ﾊﾞﾂｸｼﾖｳ + ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24010-3P865 |
US $2,926 |
||
|
24010
|
24010
24010-3P866 Harness Assy-Main9505--01 ~ 9606--01; *S.VG30DET; !ﾃﾞﾕｱﾙ ｴｱｺﾝ ｼﾖｳ 3ｳｴｲ ｴﾚｸﾄﾛﾆﾂｸ ﾒ-ﾀ- |
24010-3P866 |
US $2,926 |
||
|
24010
|
24010
24010-3P867 Harness Assy-Main9505--01 ~ 9606--01; *S.VG30DET; "ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ 3ｳｴｲ ｴﾚｸﾄﾛﾆﾂｸ ﾒ-ﾀ- |
24010-3P867 |
US $2,926 |
||
|
24010
|
24010
24010-3P870 Harness Assy-Main9410--01 ~ 9505--01; *S.VG30DET; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
24010-3P870 |
US $2,926 |
||
|
24010
|
24010
24010-3P874 Harness Assy-Main9410--01 ~ 9505--01; *S.VG30DET; IT ｴｱｺﾝ + ｴｱﾊﾞﾂｸﾞ+ﾃﾞﾕｱﾙｴｱｺﾝ |
24010-3P874 |
US $2,926 |
||
|
24010
|
24010
24010-3P875 Harness Assy-Main9410--01 ~ 9505--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ + ｴｱﾊﾞﾂｸﾞ ｼﾖｳ |
24010-3P875 |
US $2,926 |
||
|
24014
|
24014
24014-1P680 Harness Assy-Body9309--01 ~ 9606--01; S.VG30DET |
24014-1P680 |
US $849.60 |
||
|
24014
|
24014
24014-1P681 Harness Assy-Body9309--01 ~ 9505--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24014-1P681 |
US $849.60 |
||
|
24014
|
24014
24014-3P710 Harness Assy-Body9606--01 ~ ; S |
24014-3P710 |
US $2,744 |
||
|
24014
|
24014
24014-3P711 Harness Assy-Body9606--01 ~ ; *S; AV ｼｽﾃﾑ ｼﾖｳ |
24014-3P711 |
US $2,744 |
||
|
24014
|
24014
24014-3P723 Harness Assy-Body9606--01 ~ ; *S; ｾﾚｸｼﾖﾝS-4 |
24014-3P723 |
US $2,744 |
||
|
24014
|
24014
24014-3P724 Harness Assy-Body9606--01 ~ ; *S; ｾﾚｸｼﾖﾝ S-4+AVｼｽﾃﾑ |
24014-3P724 |
US $2,744 |
||
|
24014
|
24014
0122100351 NUT9606--01 ~ ; S |
0122100351 |
from US $0.86 |
||
|
24014
|
24014
0143601141 SCREW9309--01 ~ 9505--01; S.VG30DET |
0143601141 |
US $2.36 |
||
|
24014
|
24014
24069-3P000 Harness Assy-Roof9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24069-3P000 |
US $197.28 |
||
|
24014
|
24014
24069-3P010 Harness Assy-Roof9309--01 ~ 9606--01; *S.VG30DET; ｻﾝﾙ-ﾌ + ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24069-3P010 |
US $197.28 |
||
|
24014P
|
24014P
24069-3P000 Harness Assy-Roof9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24069-3P000 |
US $197.28 |
||
|
24014P
|
24014P
24069-3P010 Harness Assy-Roof9309--01 ~ 9606--01; *S.VG30DET; ｻﾝﾙ-ﾌ + ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24069-3P010 |
US $197.28 |
||
|
24015
|
24015
24017-1P600 Harness Assy-Tail9309--01 ~ 9410--01; S.VG30DET |
24017-1P600 |
US $237.60 |
||
|
24015
|
24015
24017-1P601 Harness Assy-Tail9309--01 ~ 9410--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24017-1P601 |
US $237.60 |
||
|
24015
|
24015
24017-3P700 Harness Assy-Tail9410--01 ~ 9606--01; S.VG30DET |
24017-3P700 |
US $237.60 |
||
|
24015
|
24015
24017-3P701 Harness Assy-Tail9410--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24017-3P701 |
US $237.60 |
||
|
24017N
|
24017N
24015-1P680 Harness-Body, Lh9309--01 ~ 9505--01; *S.TP/TS; ABS ｼﾖｳ |
24015-1P680 |
US $1,904 |
||
|
24017N
|
24017N
24015-1P681 Harness-Body, Lh9309--01 ~ 9410--01; *S.TP/TS; ABS + AV ｼｽﾃﾑ ｼﾖｳ |
24015-1P681 |
US $1,904 |
||
|
24017N
|
24017N
24015-1P682 Harness-Body, Lh9309--01 ~ 9606--01; S.TP/TS |
24015-1P682 |
US $1,904 |
||
|
24017N
|
24017N
24015-1P683 Harness-Body, Lh9309--01 ~ 9410--01; *S.TP/TS; AV ｼｽﾃﾑ ｼﾖｳ |
24015-1P683 |
US $1,904 |
||
|
24017N
|
24017N
24015-1P800 Harness-Body, Lh9606--01 ~ ; S |
24015-1P800 |
US $1,904 |
||
|
24017N
|
24017N
24015-1P802 Harness-Body, Lh9606--01 ~ ; *S; AV ｼｽﾃﾑ ｼﾖｳ |
24015-1P802 |
US $1,904 |
||
|
24017N
|
24017N
24015-3P800 Harness-Body, Lh9410--01 ~ 9505--01; *S.TP/TS; ABS + AV ｼｽﾃﾑ ｼﾖｳ |
24015-3P800 |
US $1,904 |
||
|
24017N
|
24017N
24015-3P801
Harness-Body, Lh
9410--01 ~ 9606--01; *S.TP/TS; AV ｼｽﾃﾑ ｼﾖｳ |
24015-3P801 |
— | ||
|
24018Q
|
24018Q
24167-1P670 Harness-Sub9309--01 ~ 9606--01; S.VG30DET |
24167-1P670 |
US $48.67 |
||
|
24018U
|
24018U
24027-0P010 Harness-Sub9309--01 ~ 9606--01; S.VG30DET |
24027-0P010 |
US $12.82 |
||
|
24036M
|
24036M
24036-0P700 Harness-Audio9309--01 ~ 9401--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24036-0P700 |
US $95.33 |
||
|
24036M
|
24036M
24036-1P100 Harness-Audio9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24036-1P100 |
US $95.33 |
||
|
24036M
|
24036M
24036-0P701 Harness-Audio9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24036-0P701 |
US $95.33 |
||
|
24036MA
|
24036MA
24036-1P100 Harness-Audio9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24036-1P100 |
US $95.33 |
||
|
24036MB
|
24036MB
24036-0P701 Harness-Audio9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24036-0P701 |
US $95.33 |
||
|
24040
|
24040
24042-0P010 Harness Assy-Air Conditioner9309--01 ~ 9606--01; S.VG30DET |
24042-0P010 |
US $138.53 |
||
|
24040
|
24040
24045-0P000 Harness Assy-Air Conditioner, Rear9309--01 ~ 9505--01; S.VG30DET |
24045-0P000 |
US $287.45 |
||
|
24040
|
24040
24045-0P005 Harness Assy-Air Conditioner, Rear9606--01 ~ ; *S; ｺﾝﾌｵ-ﾀﾌﾞﾙ ｼ-ﾄ ｼﾖｳ |
24045-0P005 |
US $287.45 |
||
|
24040M
|
24040M
24045-0P000 Harness Assy-Air Conditioner, Rear9309--01 ~ 9505--01; S.VG30DET |
24045-0P000 |
US $287.45 |
||
|
24040M
|
24040M
24045-0P005 Harness Assy-Air Conditioner, Rear9606--01 ~ ; *S; ｺﾝﾌｵ-ﾀﾌﾞﾙ ｼ-ﾄ ｼﾖｳ |
24045-0P005 |
US $287.45 |
||
|
24160
|
24160
24060-1P100 Harness Assy-Room Lamp9309--01 ~ 9606--01; S.VG30DET |
24060-1P100 |
US $113.76 |
||
|
24160
|
24160
24060-1P101 Harness Assy-Room Lamp9309--01 ~ 9606--01; *S.VG30DET; ｻﾝﾙ-ﾌ ｼﾖｳ |
24060-1P101 |
US $113.76 |
||
|
24160
|
24160
24060-1P105 Harness Assy-Room Lamp9606--01 ~ ; *S; ｾﾚｸｼﾖﾝS-4 |
24060-1P105 |
US $113.76 |
||
|
24160
|
24160
24060-1P106 Harness Assy-Room Lamp9606--01 ~ ; *S; ｾﾚｸｼﾖﾝS-4+ｻﾝﾙ-ﾌ ｼﾖｳ |
24060-1P106 |
US $113.76 |
||
|
24167BA
|
24167BA
24027-2P000 Harness-Sub9309--01 ~ 9606--01; *S.VG30DET; ﾌｴﾝﾀﾞ- ﾐﾗ-X2 |
24027-2P000 |
US $159.84 |
||
|
24167H
|
24167H
28370-0P700 Harness-Sub9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
28370-0P700 |
US $75.89 |
||
|
24167H
|
24167H
28370-1P600 Harness-Sub9309--01 ~ 9606--01; *S.VG30DET; AV ｼｽﾃﾑ ｼﾖｳ |
28370-1P600 |
US $146.88 |
||
|
24167H
|
24167H
24028-0P700 Harness-Sub9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24028-0P700 |
US $14.83 |
||
|
24167HA
|
24167HA
24028-0P700 Harness-Sub9309--01 ~ 9606--01; *S.VG30DET; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ |
24028-0P700 |
US $14.83 |
||
|
24229+B
|
24229+B
24353-0P000 Bracket-Junction9309--01 ~ 9505--01; S |
24353-0P000 |
US $10.22 |
||
|
24229+C
|
24229+C
24354-0P000 Bracket-Junction9309--01 ~ 9606--01; S.VG30DET |
24354-0P000 |
US $16.27 |
||
|
24302
|
24302
24124-1P600 Harness Assy-Door, Front Rh9309--01 ~ 9410--01; S.VG30DET |
24124-1P600 |
US $389.40 |
||
|
24302
|
24302
24124-3P700 Harness Assy-Door, Front Rh9410--01 ~ 9606--01; S.VG30DET |
24124-3P700 |
US $247.68 |
||
|
24302
|
24302
24124-3P702 Harness Assy-Door, Front Rh9606--01 ~ ; S |
24124-3P702 |
US $247.68 |
||
|
24302
|
24302
24124-3P703 Harness Assy-Door, Front Rh9606--01 ~ ; *S; 3ﾃﾝ ｾﾂﾄ ｵﾌﾟﾝｼﾖﾝ ｼﾖｳ |
24124-3P703 |
US $247.68 |
||
|
24303
|
24303
24125-1P600 Harness Assy-Door, Front9309--01 ~ 9606--01; S.VG30DET |
24125-1P600 |
US $246.24 |
||
|
24303
|
24303
24125-1P603 Harness Assy-Door, Front9606--01 ~ ; *S; 3ﾃﾝ ｾﾂﾄ ｵﾌﾟﾝｼﾖﾝ ｼﾖｳ |
24125-1P603 |
US $246.24 |
||
|
24304
|
24304
24126-1P600 Harness Assy-Door, Rear9309--01 ~ 9606--01; S.VG30DET |
24126-1P600 |
US $152.64 |
||
|
24304
|
24304
24126-1P601 Harness Assy-Door, Rear9309--01 ~ 9606--01; *S.VG30DET; ﾎﾝｶﾞﾜ ｼﾖｳ |
24126-1P601 |
US $152.64 |
||
|
24304
|
24304
24126-1P603 Harness Assy-Door, Rear9606--01 ~ ; S |
24126-1P603 |
US $152.64 |
||
|
24304
|
24304
24126-1P604 Harness Assy-Door, Rear9606--01 ~ ; *S; ｺﾝﾌｵ-ﾀﾌﾞﾙ ｼ-ﾄ ｼﾖｳ |
24126-1P604 |
US $152.64 |
||
|
24305
|
24305
24127-1P600 Harness Assy-Door, Rear Lh9309--01 ~ 9606--01; S.VG30DET |
24127-1P600 |
US $167.04 |
||
|
24305
|
24305
24127-1P601 Harness Assy-Door, Rear Lh9309--01 ~ 9606--01; *S.VG30DET; ﾎﾝｶﾞﾜ ｼﾖｳ |
24127-1P601 |
US $167.04 |
||
|
24305
|
24305
24127-1P603 Harness Assy-Door, Rear Lh9606--01 ~ ; S |
24127-1P603 |
US $167.04 |
||
|
24305
|
24305
24127-1P604 Harness Assy-Door, Rear Lh9606--01 ~ ; *S; ｺﾝﾌｵ-ﾀﾌﾞﾙ ｼ-ﾄ ｼﾖｳ |
24127-1P604 |
US $167.04 |
||
|
24312P
|
24312P
24313-1P105 Label-Fuse Block9309--01 ~ 9410--01; S.VG30DET |
24313-1P105 |
US $4.46 |
||
|
24312P
|
24312P
24313-3P800 Label-Fuse Block9410--01 ~ 9606--01; S.VG30DET |
24313-3P800 |
US $4.46 |
||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
253
|
Electrical unit
253
|
||||
|
25410R
|
25410R
2432101L00 Block Assy-Fuse9309--01 ~ 9606--01; S.VG30DET |
2432101L00 |
US $4.90 |
||
|
678
|
Dash trimming & fitting
678
|
||||
|
678
|
Dash trimming & fitting
678
|
||||
