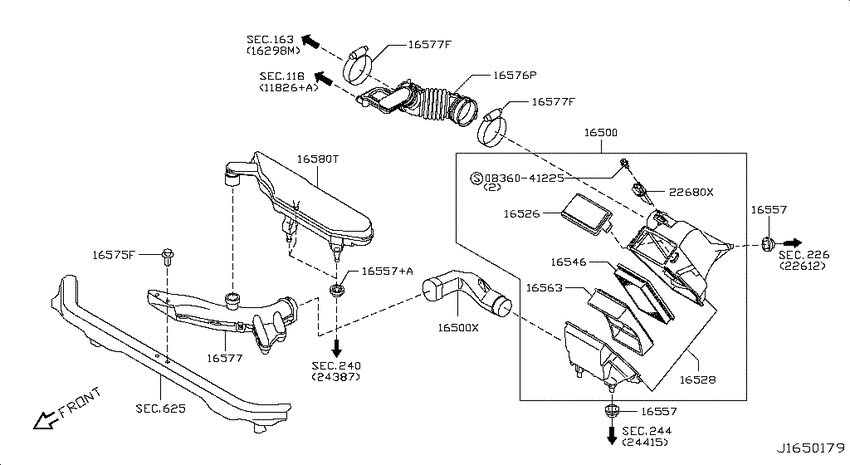

Air cleaner (2009-02-01 ~ ; AIR CLEANER; MR18DE) Diagram Nissan CUBE
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- drive
- 2WD
- transmission
- 6MT
- grade
- 18S
- body
- W
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836041225
|
0836041225
08360-41225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-41225 |
— | ||
|
118
|
Crankcase ventilation
118
|
||||
|
163
|
Throttle chamber
163
|
||||
|
16500
|
16500
16500-ED80B Air Cleaner2009-02-01 ~ ; MR18DE; , |
16500-ED80B |
US $444.62 |
||
|
16500
|
16500
16554-ED805 Duct-Air2009-02-01 ~ ; MR18DE; , |
16554-ED805 |
from US $30.82 |
||
|
16500X
|
16500X
16554-ED805 Duct-Air2009-02-01 ~ ; MR18DE; , |
16554-ED805 |
from US $30.82 |
||
|
16526
|
16526
16526ED000 Air Cleaner Cover2009-02-01 ~ ; MR18DE; , |
16526ED000 |
from US $29.95 |
||
|
16528
|
16528
16528-ED800 Body Assy-Air Cleaner2009-02-01 ~ ; MR18DE; , |
16528-ED800 |
US $133.06 |
||
|
16546
|
16546
16546-ED000 Air Cleaner Element2009-02-01 ~ ; MR18DE; , |
16546-ED000 |
US $32.56 |
||
|
16557
|
16557
165576N200 Mounting Rubber2009-02-01 ~ ; MR18DE; , |
165576N200 |
from US $4.32 |
||
|
16557
|
16557
16557AL500 Mounting Rubber2009-02-01 ~ ; MR18DE; , |
16557AL500 |
from US $4.37 |
||
|
16557
|
16557
165576N200 Mounting Rubber2009-02-01 ~ ; MR18DE; , |
165576N200 |
from US $4.32 |
||
|
16557
|
16557
16557AL500 Mounting Rubber2009-02-01 ~ ; MR18DE; , |
16557AL500 |
from US $4.37 |
||
|
16557+A
|
16557+A
16557AL500 Mounting Rubber2009-02-01 ~ ; MR18DE; , |
16557AL500 |
from US $4.37 |
||
|
16563
|
16563
16563ED000 Case2009-02-01 ~ ; MR18DE; , |
16563ED000 |
US $20.45 |
||
|
16575F
|
16575F
0155310501 CLIP-TRIM2009-02-01 ~ ; MR18DE; , |
0155310501 |
US $0.97 |
||
|
16576P
|
16576P
16576-ED800 Duct Assy-Air2009-02-01 ~ ; MR18DE; , |
16576-ED800 |
US $89.28 |
||
|
16577
|
16577
16554-1FD0A
Air Duct
2009-02-01 ~ ; MR18DE; , |
16554-1FD0A |
— | ||
|
16577
|
16577
1446445V1A Clamp-Hose2009-02-01 ~ ; MR18DE; , |
1446445V1A |
US $10.22 |
||
|
16577F
|
16577F
1446445V1A Clamp-Hose2009-02-01 ~ ; MR18DE; , |
1446445V1A |
US $10.22 |
||
|
16577F
|
16577F
1446445V1A Clamp-Hose2009-02-01 ~ ; MR18DE; , |
1446445V1A |
US $10.22 |
||
|
16580T
|
16580T
16585-1FD0A
Resonator Assy-Air
2009-02-01 ~ ; MR18DE; , |
16585-1FD0A |
— | ||
|
226
|
Engine control module
226
|
||||
|
22680X
|
22680X
226807S000 Mass Air Flow Sensor2009-02-01 ~ ; MR18DE; , |
226807S000 |
from US $194.05 |
||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
244
|
Battery & battery mounting
244
|
||||
|
625
|
Front apron & radiator core support
625
|
||||
|
625
|
Front apron & radiator core support
625
|
||||
|
625
|
Front apron & radiator core support
625
|
||||
